Stainless Steel Checkered Plate
Checkered plate combines slip resistance, decorative appeal and added rigidity. It is widely used for walkways, platforms, vehicle floors, marine decks and architectural applications.
Description
Product Introduction

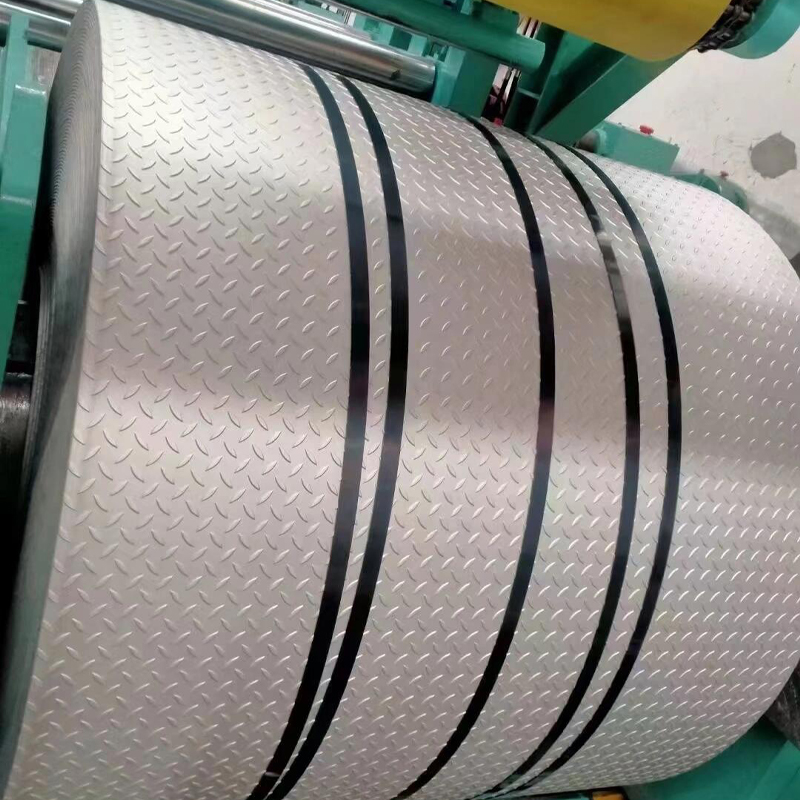

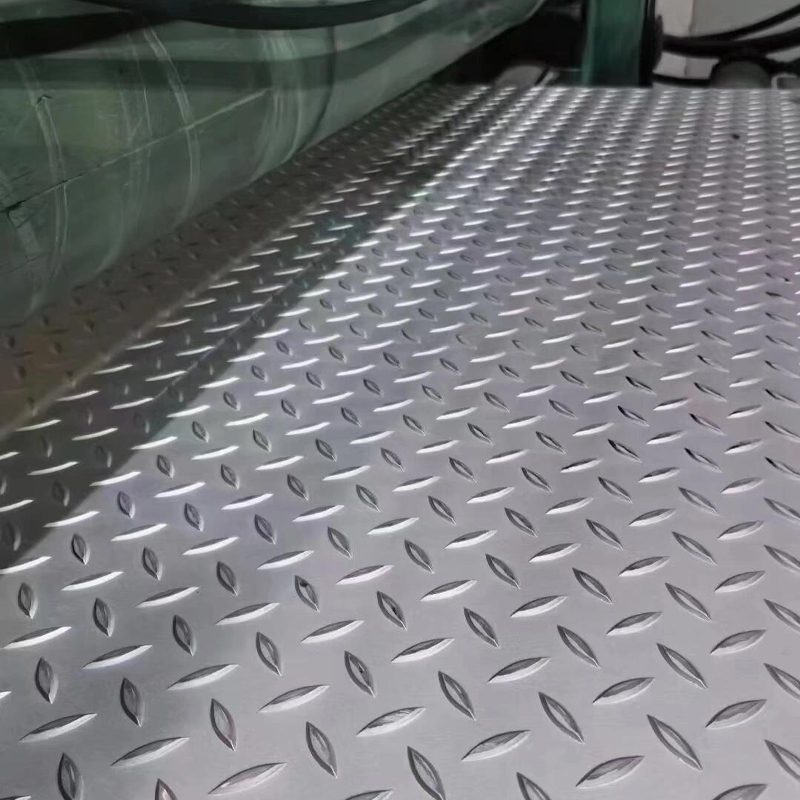

Checkered plate, also known as diamond plate or tread plate, has a raised pattern that improves traction while adding a durable decorative finish. It is suitable for applications that require slip resistance, wear resistance and load-bearing performance.
Typical Cases
| Sector | Cases | Benefits |
|---|---|---|
| Construction | Stair treads, pedestrian bridges, parking-garage ramps, outdoor platforms, balcony and bathroom floors, drainage covers and guardrails | Reliable traction, durability and easy maintenance |
| Industrial | Operating platforms, inspection walkways, equipment surfaces, tool cabinets, warehouse shelves, cold stores and food-processing areas | Wear resistance and corrosion resistance; 304/316L is suited to hygienic environments |
| Transport and marine | Truck and trailer floors, container floors, train steps, ship decks, docks and offshore walkways | Safe footing under wet, heavy-duty and corrosive conditions |
| Other uses | Agricultural equipment, loading platforms, display fixtures, interior finishes and anti-slip mats | Practical, attractive and easy to clean |

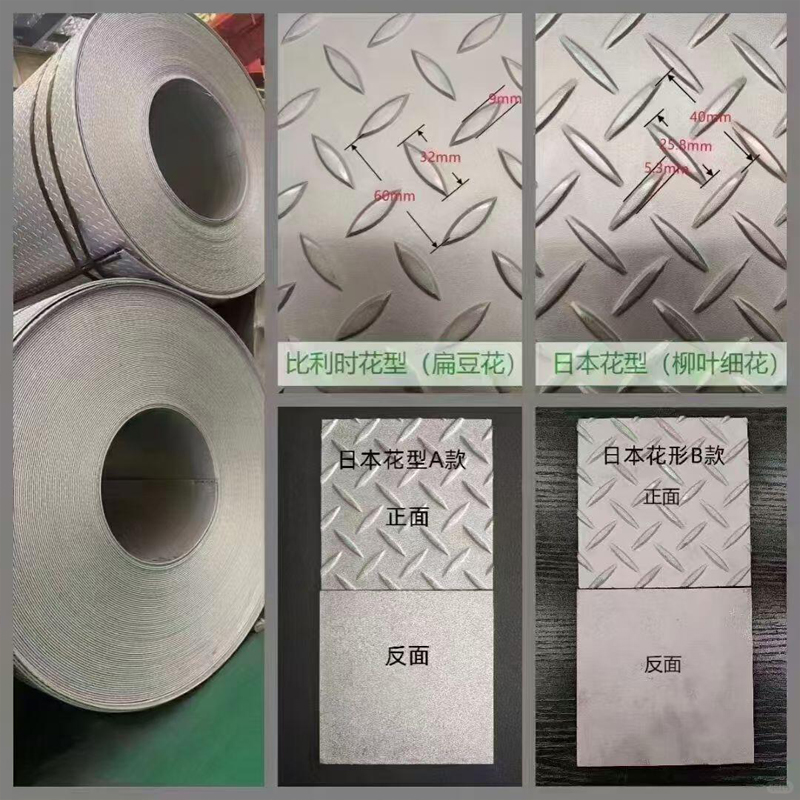

Pattern Selection
- Lentil pattern: balanced slip resistance and load distribution; common for steps, industrial platforms and vehicle floors.
- Diamond pattern: strong traction and a neat three-dimensional appearance; suitable for decks and equipment platforms.
- Round pattern: combines traction with a softer appearance; suitable for public and interior areas.
- Striped pattern: directional texture and good drainage; suited to passageways and conveyor areas.
Product Parameters
Checkered plate is a steel sheet with raised or recessed patterns. It is used primarily for anti-slip and decorative purposes and can also increase sheet rigidity.
Material Options
- Carbon steel: Q235 and Q345 grades for economical general industrial use.
- Stainless steel: 201, 304 and 316L grades for corrosion-resistant food, medical and coastal applications.
- Aluminium alloy: lightweight material for transport and aerospace applications.
- Galvanized steel: enhanced corrosion protection for outdoor facilities.
Manufacturing and Sizes
- Hot-rolled: pattern formed integrally with the base plate for demanding, heavy-load applications.
- Cold-rolled/embossed: high dimensional precision and smooth finish for decorative applications.
- Typical thickness: 2.0–8.0 mm; common widths: 1219, 1250, 1500 and 1540 mm.
- Typical lengths: 2000–6000 mm; custom lengths are available.
