Monel K500
Complete Technical Data Sheet of Monel K500 properties Chemical Composition Mechanical Properties Physical Properties International Standards & Grade Equivalents Corrosion Resistance and Durability in Monel K500 Corrosion Resistance Properties of Monel K-500 Monel K500 is a nickel-copper alloy known for its excellent corrosion resistance properties. This alloy maintains integrity in corrosive environments, including seawater and […]
Description
Four Product Forms of Monel K500
Monel K500 Plates
These plates are widely used in marine engineering, chemical processing, and other industrial applications due to their excellent corrosion resistance and strength. They can be easily fabricated into different shapes for specific uses.

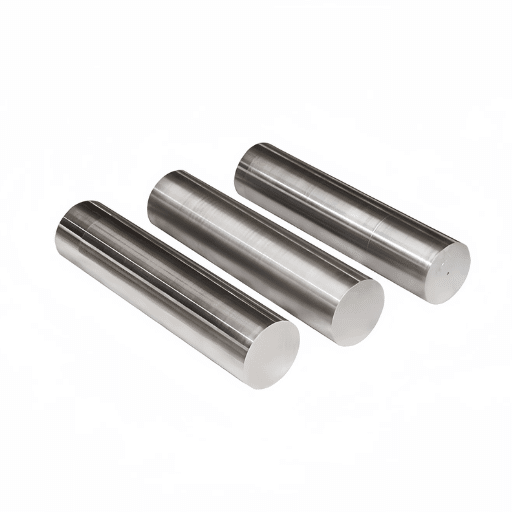

Monel K500 Bars/Rods
Known for their versatility, Monel K500 bars and rods are essential in manufacturing components like fasteners, shafts, and pump parts. Their superior strength and toughness make them ideal for high-stress applications.
Monel K500 Tubes
With exceptional resistance to seawater and chemical environments, Monel K500 tubes are extensively utilized in heat exchangers, condensers, and piping systems. Their durability ensures reliable performance in harsh conditions.

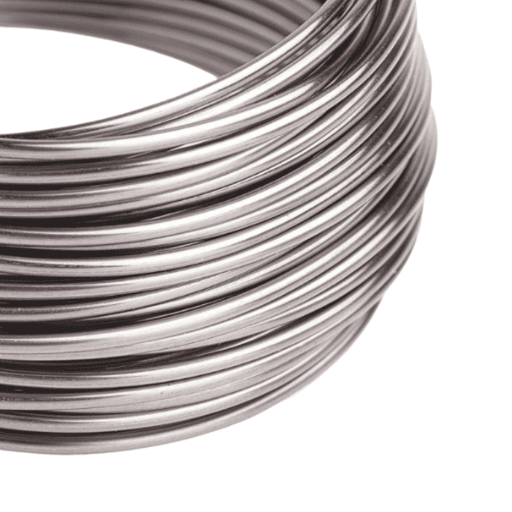

Monel K500 Wire
Monel K500 wire is commonly employed in oil rigs, electrical components, and springs. Its high tensile strength combined with corrosion resistance makes it perfect for critical applications requiring precision and durability.
Complete Technical Data Sheet of Monel K500 properties
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 63-70 |
| Copper (Cu) | 27-33 |
| Aluminum (Al) | 2.3-3.15 |
| Titanium (Ti) | 0.35-0.85 |
| Iron (Fe) | ≤ 2 |
| Manganese (Mn) | ≤ 1.5 |
| Silicon (Si) | ≤ 0.5 |
| Carbon (C) | ≤ 0.25 |
| Sulfur (S) | ≤ 0.01 |
| Cobalt (Co) | Traces |
| Property | Value | Notes |
|---|---|---|
| Tensile Strength | 965-1100 MPa | Varies by heat treatment |
| Yield Strength (0.2% Offset) | 690 MPa | High resistance to deformation |
| Elongation | 20% | Tested under standard conditions |
| Hardness | 28-35 HRC | Suitable for high-strength use |
| Modulus of Elasticity | 179 GPa | Consistent across applications |
| Fatigue Strength | 320 MPa | For high-cycle fatigue |
| Impact Strength | >100 Joules | Outstanding toughness |
| Shear Strength | 550 MPa | Excellent under shear stress |
| Poisson’s Ratio | 0.32 | Typical for nickel-based alloys |
| Creep Rupture Strength | 150 MPa (at 650 °C) | Resistance to long-term loading |
| Property | Value | Notes |
|---|---|---|
| Density | 8.44 g/cm³ | High for corrosion resistance |
| Melting Range | 1350-1380 °C | Excellent high-temperature use |
| Electrical Conductivity | 5% IACS | Moderate conductivity |
| Thermal Conductivity | 21 W/m·K | At room temperature |
| Coefficient of Thermal Expansion | 13 x 10⁻⁶ /°C | Between 20-300 °C |
| Curie Temperature | 35-50 °C | Magnetic properties resistance |
| Magnetic Permeability | 1.05 (approx.) | Non-magnetic character |
| Specific Heat | 0.427 J/g·K | At room temperature |
| Resistivity | 0.45 μΩ·m | Good electrical resistance |
| Latent Heat of Fusion | 308 J/g | For aerospace and marine usage |
| Standard/Specification | Equivalent Grade | Notes |
|---|---|---|
| ASTM | B865 | Common in industrial applications |
| UNS | N05500 | Universal Numbering System |
| ISO | 15156-3 | Oil and gas use |
| DIN | 2.4375 | European classification |
| BS | Monel K500 | British Standards equivalent |
| ASME | SB-865 | Boiler and pressure vessel use |
| AMS | 4676 | Aerospace specification |
| EN | 2.4375 | European Norm equivalent |
| SAE | AMS 4676 | Society of Automotive Engineers |
| JIS | NW5500 | Japanese Industrial Standards |
Fasteners and Components of Monel K500 strength

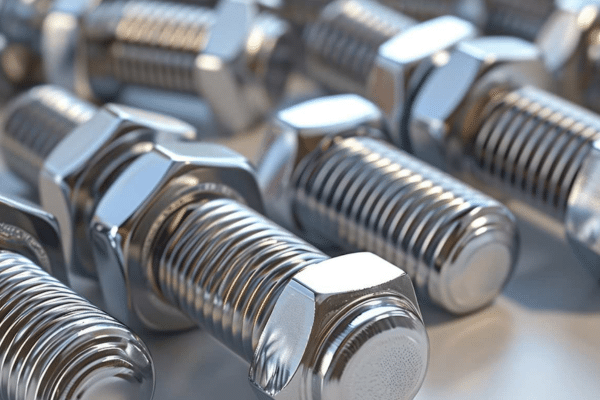

Types of Fasteners Made from Monel K-500
Monel K-500 is a nickel-copper alloy known for its high strength and excellent corrosion resistance, making it ideal for fasteners in marine and industrial applications. Its resistance to stress-corrosion cracking ensures structural integrity in demanding environments, particularly in seawater, enhancing its suitability for critical components.
Advantages of Using K-500 Fasteners
Monel K-500 fasteners provide exceptional strength and corrosion resistance, making them ideal for harsh environments. Their non-magnetic properties are beneficial in specialized applications, while their high tensile strength ensures reliability under stress. This results in long-term durability and minimal maintenance, enhancing operational efficiency and reducing downtime.
Monel K500 applications
Monel K-500 nickel alloy fasteners are crucial in marine, aerospace, and chemical industries due to their resistance to seawater corrosion and harsh environments. They provide secure connections in shipbuilding and aircraft structures while maintaining the structural integrity of equipment exposed to acids, alkalis, and extreme conditions.
Corrosion Resistance and Durability in Monel K500
Corrosion Resistance Properties of Monel K-500
Monel K500 is a nickel-copper alloy known for its excellent corrosion resistance properties. This alloy maintains integrity in corrosive environments, including seawater and acidic solutions. The addition of aluminum and titanium enhances its protective oxide film, improving resistance to pitting and stress-corrosion cracking. Monel K500’s high strength and durability make it particularly suitable for critical applications, ensuring long-lasting performance in harsh conditions.
Long-Term Durability in Harsh Environments
Monel K-500 is valued for its long-term durability, thanks to its excellent mechanical properties and corrosion resistance. It performs reliably in harsh marine and chemical environments, resisting degradation from seawater and corrosive substances. Components made from this alloy, such as fasteners and shafts, maintain structural integrity and high performance even under challenging conditions, making Monel K-500 an ideal choice for demanding equipment and structures.
Maintenance and Care for Alloy K500
Proper maintenance of Alloy K500 is essential for maximizing its lifespan and performance. Regular inspections for wear, corrosion, and stress help in early issue detection. Cleaning with non-abrasive methods maintains surface integrity. Adhering to recommended procedures during welding or machining is vital to preserve mechanical properties and prevent stress-corrosion cracking. By following best practices, industries can ensure Monel K-500 components operate efficiently and reliably in demanding environments.
What Our Clients Say
“Monel K500 is exceptional for marine applications. Its corrosion resistance is unmatched, particularly in seawater. I rely on this alloy for durability and long-term performance in harsh environments.”
John Peterson
Marine Engineer
“I highly recommend Monel K500 for aerospace components. Its strength and resistance to extreme conditions make it a top choice. This alloy ensures reliable performance under significant stress and temperatures.”
Samantha Hughes
Aerospace Technician
Our Latest Blogs
Alloy 625 Severe Sour Gas Service: Complete Guide
Alloy 625 is the default nickel-based alloy for severe sour gas service, qualified under NACE MR0175/ISO 15156 for all H2S…
Super 13Cr Stainless Steel: CO2 & Sour Service Guide
Super 13Cr stainless steel is a low-carbon, nickel- and molybdenum-strengthened martensitic grade (UNS S41425, S41426, S41427) built to outlast conventional…
Inconel 718 vs 725 vs 925: The Complete Selection Guide
Inconel 718, 725, and 925 are all age-hardenable nickel alloys, but each is built for a different job. Choose Inconel…
Duplex Stainless Steel Sour Service: 2205 vs 2507 Limits
Yes, duplex stainless steel sour service is practical and proven, but only within defined NACE MR0175/ISO 15156 limits. Standard duplex…
What Is Sour Service? H2S Environments Explained
Sour service is oil and gas equipment exposure to hydrogen sulfide (H2S) that can crack steel and other alloys. Under…
Sulfide Stress Cracking: Hardness Limits & Prevention
Sulfide stress cracking (SSC) is a form of hydrogen embrittlement that occurs when high-hardness steel under tensile stress is exposed…
NACE MR0175/ISO 15156 Explained: Sour Service Guide
NACE MR0175/ISO 15156 is the international standard that governs metallic materials for oil and gas production environments containing hydrogen sulfide…
How to Select Corrosion-Resistant Alloys for Sour Service
To select a corrosion-resistant alloy for sour service, characterize the environment first, classify sour severity by H2S partial pressure, screen…
Frequently Asked Questions
What is Monel K500 and what are its key properties?
Monel K500 is a nickel-copper alloy renowned for its superior corrosion resistance, high strength, and excellent durability in harsh environments. It combines the corrosion-resistant properties of Monel 400 with added strength due to the inclusion of aluminum and titanium, making it an ideal choice for marine, chemical, and aerospace applications.
How does Monel K500 perform in industrial applications?
Monel K500 provides exceptional performance in demanding industrial settings such as offshore oil and gas production, chemical processing, and marine engineering. Its resilience in both high-pressure and high-temperature environments makes it a top choice for critical components like pumps, valves, and fasteners.
How resistant is Monel K500 to seawater environments?
Monel K500 offers unparalleled resistance to seawater corrosion, making it highly reliable for marine applications. Its ability to withstand biofouling and saltwater pitting ensures long-term durability and performance, particularly in shipbuilding and underwater equipment.
Can Monel K500 be machined and welded?
Yes, Monel K500 can be machined and welded effectively. However, its high strength and work-hardening characteristics require specialized tools and techniques. Our team provides custom fabrication and precision machining services to meet your specific project requirements.
What are the benefits of using Monel K500 in aerospace applications?
Monel K500 is widely employed in aerospace systems due to its strength-to-weight ratio and resistance to corrosion in both acidic and high-moisture environments. It is used in manufacturing components like turbine blades, fasteners, and landing gear for its reliability under extreme conditions.
Does Monel K500 require special treatments for enhanced performance?
Monel K500 is commonly subjected to precipitation hardening to achieve higher strength and hardness levels. We offer material processing solutions, including heat treatment, to deliver components that meet strict performance standards.
What industries benefit most from Monel K500?
Monel K500 is utilized across a wide range of industries, including marine engineering, oil and gas production, chemical processing, aerospace, and industrial manufacturing. Its unique combination of strength and corrosion resistance ensures excellent performance in highly challenging conditions.
How can we support businesses using Monel K500?
We offer tailored solutions for businesses utilizing Monel K500, including material supply, custom machining, heat treatment, and technical support. Our commitment to quality and precision ensures that your Monel K500 components meet industry standards and exceed expectations.
