High Standard Stainless Steel With Strict Inspection
Titanium Bars/Rods
Hot Rolled Standard finish for general industrial applications. Surface roughness: Ra 3.2-6.3 µm. Cost-effective for non-critical applications. Cold Drawn Superior surface finish and dimensional accuracy. Surface roughness: Ra 0.8-1.6 µm. Improved mechanical properties through work hardening. Centerless Ground Precision ground surface for tight tolerances. Surface roughness: Ra 0.2-0.8 µm. Ideal for precision machining and aerospace […]
Description

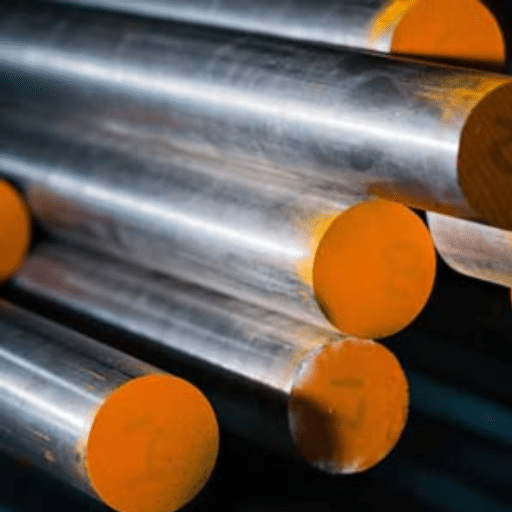

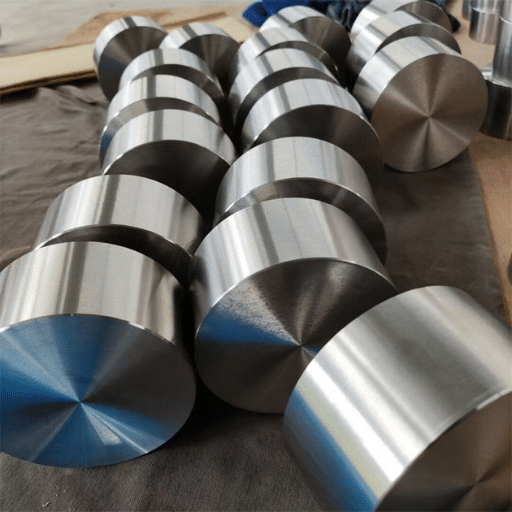

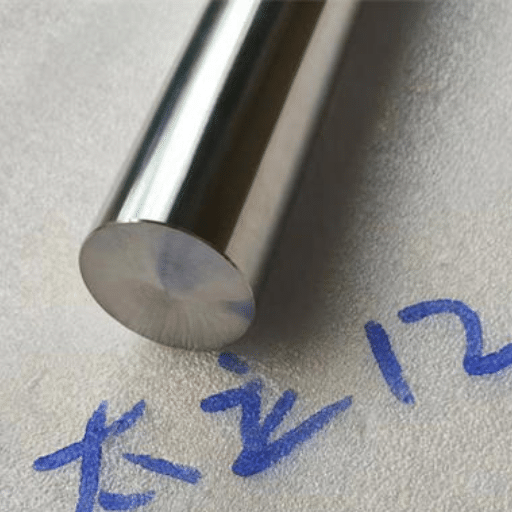

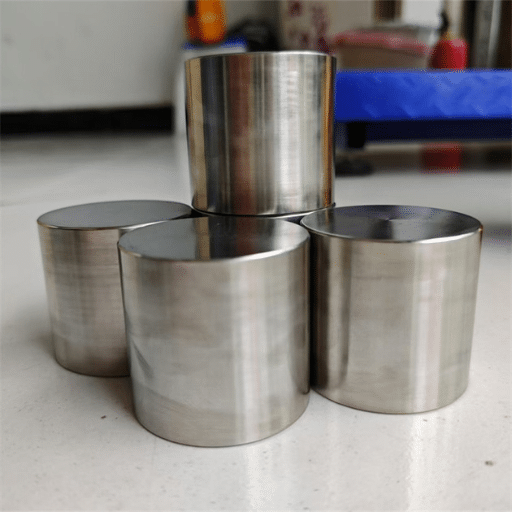

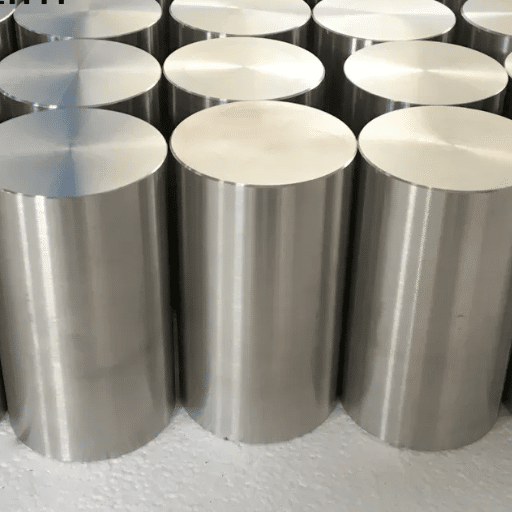

What is a Titanium Rod/Bar?
Titanium bars/rods are long, solid materials made from titanium metal, known for their high strength, lightweight properties, and excellent corrosion resistance. They are widely used in aerospace, medical, industrial, and chemical applications, ideal for scenarios requiring high performance and reliability. Common uses include aircraft components, medical implants, chemical equipment, and high-strength structural parts.
Available Grades & Chemical Composition
Comprehensive Data for Engineering Decisions: Our titanium bars and rods meet or exceed the following international standards
Grade 1 (CP-1)
Primary Applications: Chemical processing, medical
Composition:99.5% Ti (lowest oxygen) Tensile Strength:240 MPa (35 ksi)Yield Strength:170 MPa (25 ksi)
Grade 5 (Ti-6Al-4V)
Primary Applications: Aerospace, automotive, marine
Composition:6% Al, 4% V, 90% Ti Tensile Strength:895 MPa (130 ksi)Yield Strength:828 MPa (120 ksi)
Grade 9 (Ti-3Al-2.5V)
Primary Applications: Hydraulic tubing, and aircraft components
Composition:3% Al, 2.5% V, 94.5% TiTensile Strength:620 MPa (90 ksi)Yield Strength:520 MPa (75 ksi)
Titanium Bars/Rods Standard Available Sizes & Dimensions
| Product Form | Diameter/Size Range | Length | Tolerance |
|---|---|---|---|
| Round Bars (Extruded) | 10mm – 500mm (0.4″ – 20″) | Up to 6000mm (240″) | ±0.5mm |
| Round Bars (Cold Drawn) | 3mm – 100mm (0.12″ – 4″) | Custom lengths available | ±0.1mm (high precision) |
| Square Bars | 10mm x 10mm – 150mm x 150mm | Up to 6000mm | ±0.8mm |
| Hexagonal Bars | 10mm – 100mm (across flats) | Up to 3000mm | ±0.8mm |
| Flat Bars | Width: 20-200mm, Thickness: 3-50mm | Up to 6000mm | ±1.0mm |
| Threaded Rods | M6 – M30 (standard threads) | Custom lengths | Per ISO/ANSI standards |
Titanium Bars/Rods Surface Finishes & Processing
Every batch undergoes rigorous quality assurance
Hot Rolled
Standard finish for general industrial applications. Surface roughness: Ra 3.2-6.3 µm. Cost-effective for non-critical applications.
Cold Drawn
Superior surface finish and dimensional accuracy. Surface roughness: Ra 0.8-1.6 µm. Improved mechanical properties through work hardening.
Centerless Ground
Precision ground surface for tight tolerances. Surface roughness: Ra 0.2-0.8 µm. Ideal for precision machining and aerospace components.
Polished
Mirror-like finish for medical and aesthetic applications. Surface roughness: Ra <0.2 µm. Electropolished options available.
Why Titanium Bars & Rods?
Unmatched Performance for Critical Applications
Exceptional Strength-to-Weight Ratio
Up to 40% lighter than steel while maintaining comparable strength, making titanium ideal for high-performance applications where weight reduction is critical.
Superior Corrosion Resistance
Beyond standard mill finishes, we offer pickling, passivation, and electropolishing to enhance corrosion resistance and surface cleanliness for sanitary or high-purity applications.
Biocompatible & Safe
FDA-approved for medical implants including bone screws, hip replacements, and dental appliances due to excellent tissue compatibility.
High-Temperature Performance
Maintains structural integrity at temperatures up to 600°C (1112°F), perfect for aerospace engines and industrial applications.
Key Industrial Applications for Titanium Bars/Rods
Marine & Offshore
Superior corrosion resistance makes titanium essential for seawater and harsh marine environments.
Chemical Processing
Titanium withstands corrosive chemicals and high temperatures in demanding processing environments.
Energy & Power Generation
Critical for renewable energy systems and power plants requiring durability and corrosion resistance.
What Our Clients Say
“As a precision machining shop, we demand tight tolerances and excellent surface finish. Their cold-drawn titanium bars arrive ready to machine with minimal stock removal. The dimensional consistency is outstanding – we’re hitting ±0.0002″ tolerances consistently. Tool life has improved 30% compared to our previous supplier.”
Michael Torres
Operations Manager
“We needed custom-sized hexagonal titanium bars for a unique marine application with a tight deadline. They accommodated our specifications, expedited production, and delivered ahead of schedule. The customer service throughout the process was remarkable. Their flexibility and responsiveness set them apart from competitors.”
Captain David Morrison
Tank Fabrication Company
Why Choose Our Titanium Bars/Rods
Uncompromising Quality: All nickel alloy tubes meet or exceed industry standards, ensuring top-notch performance and safety . Rigorous quality control processes guarantee defect-free products.Extensive Product Range: Wide selection of material grades, tube types, and dimensions to meet diverse project requirements.Customization options for specific designs, finishes, and certifications.Competitive Pricing: Cost-effective solutions without compromising on quality.Transparent pricing with no hidden costs, making budgeting easier for your projects.Reliable Supply Chain: Large inventory ensures quick order fulfillment and on-time delivery, even for bulk orders.Global shipping capabilities with secure packaging to ensure safe transit to your location.Expert Technical Support: A dedicated team of engineers and technical experts to assist with material selection, customization, and project planning.24/7 customer service to address inquiries, provide quotes, and resolve issues promptly.
Our Latest Blogs
Alloy 625 Severe Sour Gas Service: Complete Guide
Alloy 625 is the default nickel-based alloy for severe sour gas service, qualified under NACE MR0175/ISO 15156 for all H2S…
Super 13Cr Stainless Steel: CO2 & Sour Service Guide
Super 13Cr stainless steel is a low-carbon, nickel- and molybdenum-strengthened martensitic grade (UNS S41425, S41426, S41427) built to outlast conventional…
Inconel 718 vs 725 vs 925: The Complete Selection Guide
Inconel 718, 725, and 925 are all age-hardenable nickel alloys, but each is built for a different job. Choose Inconel…
Duplex Stainless Steel Sour Service: 2205 vs 2507 Limits
Yes, duplex stainless steel sour service is practical and proven, but only within defined NACE MR0175/ISO 15156 limits. Standard duplex…
What Is Sour Service? H2S Environments Explained
Sour service is oil and gas equipment exposure to hydrogen sulfide (H2S) that can crack steel and other alloys. Under…
Sulfide Stress Cracking: Hardness Limits & Prevention
Sulfide stress cracking (SSC) is a form of hydrogen embrittlement that occurs when high-hardness steel under tensile stress is exposed…
NACE MR0175/ISO 15156 Explained: Sour Service Guide
NACE MR0175/ISO 15156 is the international standard that governs metallic materials for oil and gas production environments containing hydrogen sulfide…
How to Select Corrosion-Resistant Alloys for Sour Service
To select a corrosion-resistant alloy for sour service, characterize the environment first, classify sour severity by H2S partial pressure, screen…
Frequently Asked Questions
What are the key benefits of titanium bars/rods?
Titanium bars/rods are highly valued for their exceptional strength-to-weight ratio, offering lightweight yet incredibly strong solutions for demanding applications. They provide excellent corrosion resistance, making them ideal for use in harsh environments such as seawater, chemicals, and extreme temperatures. Additionally, their biocompatibility ensures they are safe for medical implants, while their durability guarantees long-lasting performance under high stress and challenging conditions.
What industries commonly use titanium bars/rods?
Titanium bars/rods are widely utilized across various industries. In aerospace, they are essential for structural components, fasteners, and landing gear. The medical field relies on them for surgical implants, dental devices, and orthopedic rods due to their biocompatibility. In marine applications, they are used for shipbuilding, offshore platforms, and seawater piping. Automotive industries incorporate them into high-performance vehicle components like exhaust systems, while industrial sectors use them in chemical processing equipment and heat exchangers.
What grades of titanium are available for bars/rods?
Titanium bars/rods are available in several grades to suit different applications. Grade 1 offers pure titanium with excellent corrosion resistance and formability, while Grade 2 provides a balance of strength and corrosion resistance. Grade 5 (Ti-6Al-4V) is the most widely used alloy, known for its high strength and excellent corrosion resistance. Grade 7, with added palladium, is ideal for extreme chemical environments, and Grade 23 (Ti-6Al-4V ELI) is a medical-grade titanium used for implants due to its extra-low interstitial properties.
Can titanium bars/rods be customized?
Yes, titanium bars/rods can be fully customized to meet specific project requirements. Customization options include tailored dimensions such as lengths, diameters, and tolerances, as well as surface finishes like polished, machined, or as-forged. Additionally, they can be certified to comply with industry standards such as ASTM, ASME, and ISO, ensuring they meet the exact needs of your application.
How do I choose the right titanium grade for my application?
The choice of titanium grade depends on the specific requirements of your application. Grade 1 or 2 is ideal for applications requiring excellent corrosion resistance and formability, while Grade 5 is best suited for high-strength applications like aerospace and automotive. Grade 7 is recommended for extreme chemical environments, and Grade 23 is perfect for medical implants due to its biocompatibility. Consulting with a materials expert can help ensure the selected grade meets your exact needs.
Are titanium bars/rods suitable for high-temperature applications?
Yes, titanium bars/rods are highly suitable for high-temperature applications. Grades like Grade 5 and Grade 23 can withstand temperatures up to 400°C (752°F) while maintaining their strength and corrosion resistance, making them ideal for aerospace, industrial, and power generation applications.
How should titanium bars/rods be stored and handled?
To maintain their quality, titanium bars/rods should be stored in a dry, well-ventilated area away from contaminants. It is important to avoid contact with carbon steel or other metals to prevent contamination. When handling, use nylon slings or padded chains instead of steel cables, and ensure protective films or coatings remain intact during storage and transportation.
What is the typical lead time for titanium bar/rod orders?
The lead time for titanium bar/rod orders depends on the size, grade, and customization requirements. Standard sizes are often available for immediate shipment, while custom orders may take 4-8 weeks. For urgent projects, expedited services may be available to meet tight deadlines.
