Titanium Alloys: Complete Guide to Grades and Applications

Titanium alloys have revolutionized the industry owing to their exceptional combination of properties, including high strength, low density, and corrosion resistance. They are primarily used in the aerospace, automotive, and medical sectors, but the list of applications remains substantial. The guide we provide here is intended for anyone, whether an engineer seeking the best grade for their project or a science enthusiast seeking to learn more about the wonders of today’s technology. We will discuss the main grades of titanium alloys, their characteristics, and several of their many applications. Eventually, you will better understand why the view that titanium alloys are a success story in performance and life is correct.

Introduction to Titanium Alloys

Titanium alloys are produced by combining titanium with other elements to enhance their properties. These alloys are prized for their exceptional strength-to-weight ratio; therefore, their use is not restricted to the aerospace, medical, automotive, and marine industries, but is instead extensive across these sectors. The applications of titanium alloys are not only limited to high temperature but also to harsh conditions, thus it is the first choice of the most demanding applications. Their versatility and reliability are key factors that underlie their perception as a must-have material in engineering and manufacturing today.

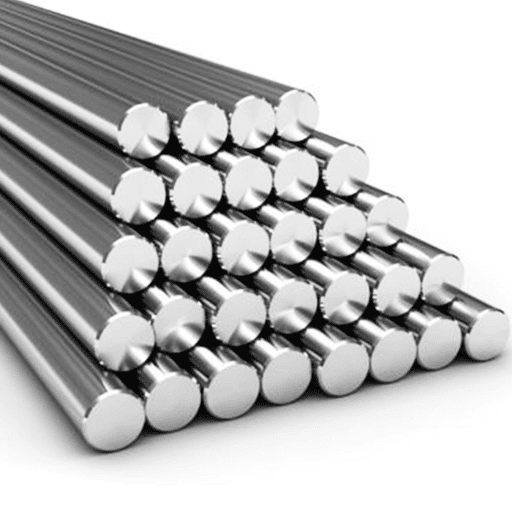

Importance of Titanium Alloys in Various Industries

Due to their exceptional traits such as high tensile strength, low density, high corrosion resistance, and tissue-friendly nature, the use of titanium and its alloys has become diverse in several sectors. The properties of titanium and its alloys have readily met the demands of very high-performance modern engineering applications. The application of titanium alloys in five main industries is discussed in a comprehensive manner below:

Aerospace Industry

The most essential materials in the manufacture of both aircraft and spacecraft are titanium alloys. Their ability to withstand very high temperatures and to reduce overall structural weight makes them ideal for components such as jet engine components, airframe structures, and landing gear. The use of titanium alloys has significantly increased fuel efficiency and performance. Statistics indicate that titanium alloys account for up to 15% of the total weight of modern commercial aircraft.

Medical Industry

Despite their high costs, titanium alloys are the most widely used materials for orthopedic implants owing to their biocompatibility and corrosion resistance. Among other things, these include hip and knee replacements, dental implants, and surgical instruments. Non-toxic nature of these alloys accounts for being tolerated by human tissues and hence very low chances of rejection. It is estimated that titanium alloys are used in more than 1 million medical implants annually.

Automotive Industry

Titanium alloys, which are new in the automotive industry, are becoming more widely accepted slowly but surely in high-performance and luxury cars owing to the fact that they are lightweight and the combined result is that they can increase the speed while keeping the fuel consumption low and also increasing the longevity of the parts. Engine valves, connecting rods, and exhaust systems are among the components that would benefit from titanium’s strength-to-weight ratio. For instance, it has been reported that using titanium components can reduce a car’s weight by up to 40%, leading to an immediate improvement in fuel economy.

Marine Industry

The very slow corrosion rate of titanium alloys in seawater is a major reason these materials are still used in shipbuilding and offshore applications. These alloys are in great demand in the industry for submarine hulls, propeller shafts, heat exchangers, and oil rig components, where the highest durability and good performance in saline environments are required. A few studies suggest that titanium alloys used for marine purposes could outlast conventional materials by more than 20 years.

Energy Industry

Being heat-resistant and long-lasting, titanium alloys are a key player in every phase of energy generation from nuclear energy converters to solar panels. They are integrated into condensers, heat exchangers, and turbines, among other components. The reliability of energy production under high-pressure and high-temperature conditions, particularly in geothermal and solar applications, can also be attributed to titanium alloys.

The five instances presented above not only demonstrate the versatility and significance of titanium alloys but also their role as indispensable materials across industries.

Overview of Titanium Properties

Titanium is a metal with exceptional properties and is therefore widely known and used across industries. The most important and possibly the most impressive property of titanium is its high strength-to-weight ratio. Although titanium is approximately 45% lighter than steel, it has the same tensile strength. Due to this property, titanium finds its way to the aerospace and automotive industry, where weight savings are essential like in landing gear, etc.

Moreover, titanium exhibits excellent corrosion resistance under a wide range of conditions, including the harshest. Its surface forms an oxide barrier that is not only protective against rust but also makes titanium to be very resistant in contact with salts, acids, and even chlorine. That property of titanium makes it an ideal material for both marine and chemical processing applications.

Another property of titanium is its thermal and electrical conductivity. It is less conductive than copper or aluminum, but titanium’s stability at extreme temperatures makes it a reliable material for heat exchangers and turbine engines, where high-temperature resistance and structural integrity are required. The titanium tolerance range is between -250°C to 600°C.

Moreover, titanium is biocompatible, meaning it does not harm living tissues and elicits no adverse reactions upon contact. That is why the metal is a top choice in the medical field, particularly for implants such as hip prosthesis, dental implants, and even pacemaker casings. A recent report indicates that the global market for titanium medical implants is projected to grow at a CAGR of approximately 5.8% from 2023 to 2030, underscoring the increasing significance of titanium in healthcare.

On the contrary, titanium, although relatively common in Earth’s crust, remains very costly to produce and process primarily because of its strong affinity for oxygen at high temperatures. However, new and advanced extraction techniques, together with recycling processes, are gradually making titanium less expensive and more accessible. In 2022, the world produced more than 250,000 metric tons of titanium, which is a clear indicator of the increasing demand for this multifaceted material.

These points collectively support the view that titanium is a unique and indispensable material across industries such as aerospace, energy, and medicine.

Understanding Titanium Grades

Titanium is classified into several grades based on its chemical composition and physical properties, enabling it to serve multiple purposes. Titanium grades are primarily distinguished by their alloying and the addition of elements such as Al, V, or Fe. In general, titanium grades can be divided into commercially pure (CP) titanium and titanium alloys.

Commercially Pure Titanium

All the four grades of CP titanium are quite alike when it comes to corrosion resistance, ductility, and weldability. The primary distinguishing factor among the grades is the amount of oxygen present, which influences their flexibility and strength.

Titanium Alloys

Two grades, 5 and 23, of titanium alloys are created for specific properties, such as strength, durability, and heat resistance, by mixing in other metals:

Latest Data and Trends

Based on the latest industry reports, the global titanium alloy marketplace is expected to experience a CAGR of 6.5% growth from 2023 to 2030 confirmed by the rising demand from the aerospace, healthcare, and energy sectors. Moreover, the increasing use of 3D printing technology is expected to increase the production of intricate titanium parts, thereby further enhancing the material’s popularity. These advancements demonstrate that titanium is not only a versatile but also a promising material across various sectors.

Comprehensive Overview of Different Grades of Titanium

The classifications of titanium according to their grades rely on the metal’s chemical composition and on its mechanical properties. Moreover, the grades qualify the metal for several industrial usages. As a rule, grades are classified as commercially pure (CP) titanium or titanium alloys.

1. Commercially Pure (CP) Titanium

CP titanium has the highest corrosion resistance and is the preferred metal for use in the human body, as it does not cause harm; therefore, it is used for medical implants and chemical processing applications. It has four grades, starting with the one that has the highest and most oxygen content which has a direct impact on strength and ductility:

• Grade 1: The softest and most ductile, ideal for applications that require deep drawing and forming, such as chemical tanks and marine components.
• Grade 2: The strength and corrosion resistance are well matched, so the grade is widely used in pressure vessels, heat exchangers, and pipelines.
• Grade 3: The main characteristic of the grade is that it has even greater strength than the two previous grades, and at the same time, it is less ductile; thus, it is mostly used in the aerospace and industrial sectors.
• Grade 4: This grade possesses the greatest strength of all the CP titanium grades and can be found in medical implants for which good resistance to corrosion and aerospace structures are requirements.

2. Titanium Alloys

The alloys are obtained by combining titanium with other metallic elements, like aluminum or vanadium, to an extent that they are not only going to be stronger but have better thermal properties. The generally recognized categories of this alloy type are as follows:

• Grade 5 (Ti-6Al-4V): The “workhorse” of titanium alloys, this alloy accounts for more than half of total titanium use; thus, it is widely used for its excellent strength, low density, and good resistance to fatigue and corrosion. It is also used in aerospace components, biomedical implants, and marine hardware.
• Grade 23 (Ti-6Al-4V ELI): A low-impurity version of Grade 5, tailored for specific critical applications in medicine, such as surgical implants and tools where biocompatibility is of superior quality is required.
• Grade 9 (Ti-3Al-2.5V): The metal is lightweight and has adequate strength, making it suitable for sports equipment, bicycle frames, and removable components in chemical processing equipment.
• Grade 12 (Ti-0.3Mo-0.8Ni): This is the alloy of the three, titanium, molybdenum, and nickel, that gives the highest corrosion resistance in the power plants and chemical industries at high-temperature areas among the frequent users of this alloy.

Main Market Trends

• MarketsandMarkets has published a study projecting that the global aerospace-grade titanium market will grow to $9.4 billion by 2030. Aircraft manufacturing and space exploration are the main reasons this growth report lists.
• 3D printing technology not only grows but also enables faster production of Grade 5 and Grade 23 titanium parts as such grades can make complex and light structures very quickly and easily.
• The medical sector is highly reliant on Grade 2 and Grade 23, and it is expected that the number of implants will increase significantly due to the aging population worldwide.

Emerging Trends

Newer, more advanced titanium recycling methods, along with more cost-effective production techniques, are enabling the use of titanium grades across various sectors. Furthermore, changes in alloy composition and the adoption of additive manufacturing can address the needs of the aerospace, healthcare, and renewable energy sectors as they evolve.

Understanding the differences in grades, their characteristics and applications is key when it comes to selecting the right material for a given application, thus guaranteeing the best performance and cost-effectiveness.

Properties of Commercially Pure Titanium Grades

The commercially pure (CP) titanium grades are in high demand, primarily due to their excellent corrosion resistance, low density, and high biocompatibility. The classification of these grades is based on both their composition and physical properties, thus, their wide-ranging applicability. The most common CP titanium grades along with their characteristics, are specified as follows:

The relative advantages and the characterization of each grade are such that commercially pure titanium is very versatile and reliable in many industries, as it can be used in various situations.

Comparison of Different Grades: Grade 1, Grade 2, Grade 4, and Grade 5

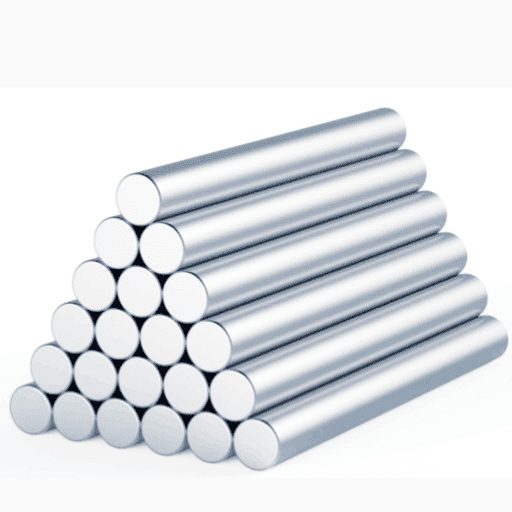

Types of Titanium Alloys

The microstructure of different titanium alloys plays a critical role in classifying them into three main groups—Alpha Alloys, Beta Alloys, and Alpha-Beta Alloys. Every group is characterized by mechanical properties differences, thus, it has the capability of being used in a particular way in different industries like aerospace, medical, and automotive, among others. The following is an exhaustive account of the various types of these titanium alloys:

1. Alpha Alloys

The alpha phase of titanium predominates in these alloys; consequently, their non-heat-treatability results from this property. Usually, the alloy constituents are aluminum and oxygen that make the alloys stronger and harder. The alloys exhibit excellent corrosion resistance, high weldability, and thermal stability as their main features.

• Composition: Aluminum (5-6%), Oxygen (trace amounts)
• Tensile Strength: 620 MPa to 900 MPa (depending on the alloy)
• Applications: Jet engines, chemical processing equipment, and marine components
• Example Alloy: Ti-5Al-2Sn

2. Beta Alloys

Beta alloys are composed of the beta phase of titanium stabilized by elements such as vanadium, molybdenum, or chromium. Their being heat treatable is one of the significant properties along with good support and ductility at the same time. Furthermore, the caution in penetration is another advantage of beta alloys; thus, their application locations require good formability.

• Composition: Vanadium (5-15%), Molybdenum (3-10%), Chromium (1-3%)
• Tensile Strength: 800 MPa to 1100 MPa
• Applications: Aerospace fasteners, springs, and orthopedic implants
• Example Alloy: Ti-15V-3Cr-3Sn-3Al

3. Alpha-Beta Alloys

The most versatile group of alloys, the α- β alloys, exhibits properties of both α- and β-phases. A heat-treatment method for these alloys yields high strength, toughness, and wear resistance; hence, they are suitable for a wide range of demanding applications.

• Composition: Aluminum (3-6%), Vanadium (2-6%), Iron, and other alloying elements
• Tensile Strength: 900 MPa to 1200 MPa
• Applications: Aircraft frames, automotive components, and military armor
• Example Alloy: Ti-6Al-4V (Grade 5), the most popular titanium alloy globally

4. Titanium Matrix Composites (TMCs)

New Titanium Matrix Composites (TMCs) are a kind of plate materials that mix titanium alloys or their components with ceramics or other reinforcements. The density of TMCs is low, and on the other hand, the rigidity is high and wear resistance is superior compared to traditional alloys.

• Composition: Titanium alloy matrix with reinforcing fibers or particles (e.g., silicon carbide)
• Tensile Strength: 1500 MPa depending on reinforcement
• Applications: Aerospace components, high-performance automotive parts, and energy sector applications

Properties Across Titanium Alloy Categories

Below is a comparison of key mechanical properties across the three main classes of titanium alloys:

Titanium alloys have revolutionized modern engineering, delivering lightweight yet durable solutions across industries. The selection of a specific alloy depends on application requirements, including strength, temperature resistance, and corrosion resistance, making titanium alloys indispensable in both traditional and advanced applications.

Classification of Titanium Alloys

Titanium alloys are typically classified into three groups based on their microstructure and mechanical properties. Therefore, the alloying categories comprise alpha, beta, and alpha-beta alloys. Each group has its own unique characteristics that make it suitable for certain applications and industries, therefore it is utilized in varying engineering areas. A comprehensive elaboration of the above-mentioned classifications is given below:

Alpha Alloys

Alpha alloys consist of titanium and aluminum in the alpha phase, with tin present in small proportions. These alloys have superb corrosion resistance, can be welded easily, and retain their strength at elevated temperatures, among other properties.

• Key Characteristics: Non-heat treatable, excellent mechanical properties at high temperatures.
• Applications: Jet engines, marine parts, and chemical plant equipment.
• Examples: Ti-5Al-2.5Sn.

Beta Alloys

Beta alloys are composed of titanium and alloying elements such as vanadium, molybdenum, and chromium, which, together with high temperatures, form the beta phase that gives the resulting alloy the characteristics of being both strong and ductile. The resulting beta alloy can be subsequently heat-treated thereby increasing its density.

• Key Characteristics: Heat treatable, high strength, and formability.
• Applications: Aerospace, medical technologies, and high-end bicycle frames.
• Examples: Ti-15V-3Cr-3Sn-3Al.

Alpha-Beta Alloys

Alpha-beta alloys are the combination of alpha and beta phases hence it allows the selection of properties of pure alpha or beta alloys. Such materials are, therefore, versatile and eventually, widely adopted in critical applications.

• Key Characteristics: Partially heat treatable, medium strength, and excellent phase stability.
• Applications: Aircraft, automotive, and industrial equipment.
• Examples: Ti-6Al-4V (the most famous alloy that is popularly known as the “workhorse” of titanium alloys).

Comparative Properties of Titanium Alloys

The following table highlights the properties of the key titanium alloy types:

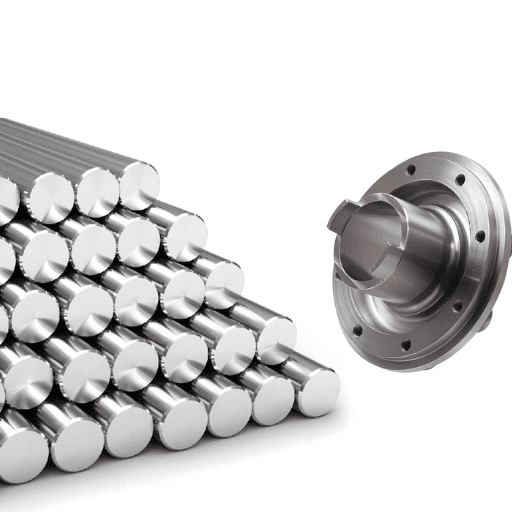

Advanced Applications and Data Insights (2023 Updates)

Recent advances indicate that titanium alloys are being increasingly used in certain areas. For instance:

• Aerospace Development: The new aircraft and spacecraft models will require materials such as Ti-6Al-2Sn-4Zr-2Mo that provide excellent strength for the very demanding high-altitude applications.
• Medical Field Progress: Beta titanium alloys, such as Ti-29Nb-13Ta-4.6Zr, are increasingly used in orthopedic implants because they are biocompatible and have lower stiffness, resulting in a lower rate of implant failure.
• In the automotive sector, alpha-beta alloys are used to manufacture lighter yet stronger components for hybrid and high-performance vehicles.

Titanium alloys are becoming increasingly versatile as improved formulations enable a wider range of applications and modern engineering challenges are addressed efficiently.

Characteristics of Titanium Grade 5 and its Applications

Among titanium alloys, Grade 5 (Ti-6Al-4V) is among the most widely used due to its exceptional properties. Below, we discuss the most significant attributes together with their respective applications:

Exceptional Strength-to-Weight Ratio

Attributes: Grade 5 titanium exhibits a tensile strength of approximately 895 MPa (130,000 psi) and a very low specific gravity of 4.43 g/cm³.

Usage: The alloy finds its place in the making of components and structures of aircraft, for instance, engines where strength is vital but weight has to be kept to the minimum.

Exceptional Corrosion Resistance

Attributes: It has complete resistance to oxidation, rust, and all types of corrosion in both acidic and saline conditions.

Usage: The alloy is suitable for the marine sector, chemical industries, and plants for water desalination.

Excellent Biocompatibility

Attributes: The alloy is biocompatible with the human body and is widely used in various medical and dental applications.

Usage: Orthopedic implants, surgical instruments, and dental prosthetics are its major applications.

Exceptional Thermal and Oxidation Resistance

Attributes: The alloy is not weakened by the heat and maintains its mechanical properties even at 400°C (752°F).

Usage: It is used in high-temperature parts like turbine blades and exhaust systems in the aerospace and automotive industries.

Good Machinability and Weldability

Attributes: The material is extremely cost-effective to machine and weld. It can be processed easily though it needs skilled hands for precision work, resulting in efficient and guaranteed manufacturing.

Usage: It is used in applications requiring industrial components and lightweight structures with precise designs, where accuracy is important.

The unique combination of Grade 5 titanium properties makes it a universal material that readily meets the complex engineering requirements of various sectors such as aviation and healthcare.
