Grade 5 Titanium (Ti-6Al-4V): Properties and Uses
The top-tier engineering materials always mention Grade 5 Titanium or Ti-6Al-4V alloy that is highly respected among metals. This alloy is simply the best when it comes to its properties and that’s why it is used in the most rigorous industries like, for instance, medical, aerospace, and automotive due to the high demand application. Nevertheless, what are the special traits of Grade 5 Titanium that the industry prefers? The content below will discuss the characteristics that have made it a global favorite for engineers and innovators alike. It will be a trip from unparalleled performance characteristics to different applications, and we will look at how Ti-6Al-4V continues to light the way for modern design and technology.

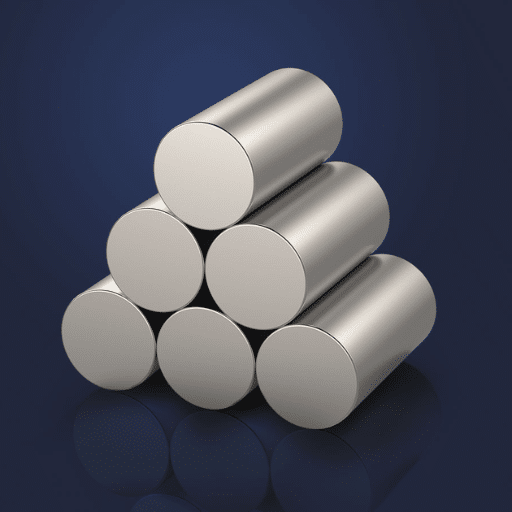

Introduction to Titanium Alloys
Titanium alloys denote metal mixtures that consist of titanium alongside freshly applied elements meant to enhance some of its properties. These alloys are extensively used due to their amazing strength-to-weight ratio, high and low-temperature resistances as well as others. For example, Grade 5 Titanium (Ti-6Al-4V) is the most popular titanium alloy since it intermingles lightness with strength and is consequently a fit for very strict sectors like aerospace, medical, and automotive. These alloys are not merely recognized for their flexibility but also for their capability to endure hardships.
What is a Titanium Alloy?
A titanium alloy refers to a combination of titanium and other metals such as aluminum and vanadium, whose purpose is to enhance titanium’s properties such as strength, resistance to corrosion, and ability to work in extreme conditions.
Overview of Grade 5 Titanium
Grade 5 Titanium, which is commonly known as Ti-6Al-4V, is a titanium alloy that is most recognized and applied in industries due to its excellent characteristics like high strength, light weight, and corrosion resistance. The ratio of the alloy is approximately 90% titanium, 6% aluminum, and 4% vanadium and is classified among alpha-beta alloys. Besides that, the alloy is still one of the top options for critical applications in different industries mainly because of its superb mechanical properties and ability to withstand extreme conditions.
Key Features: Grade 5 Titanium has some extraordinary characteristics including a very high tensile strength of around 950 MPa (138,000 psi) and a density of 4.43 g/cm³ which is approximately 60% of steel’s density but still very strong. It has the remarkable property of very high resistance to fatigue and also great biocompatibility; thus, it is used in the medical field for implants and prosthetics very often. The same reason of resistance to corrosion, especially in chloride-rich and marine environments, makes it the first choice for applications in the navy and offshore industries.
Grade 5 Titanium is the material that the aerospace industry always opts for because of its characteristics, especially in the case of metal parts like airframes, turbines, and engines, where its performance would be up to 400°C (752°F). The material’s high specific strength results in power and lightness simultaneously. Besides medical and aeronautical applications, it is also common in the automotive industry, sports equipment, and even chemical manufacturing.
Importance of Ti-6Al-4V Alloy
The Ti-6Al-4V alloy, also known as Grade 5 Titanium, is one of the most preferred titanium alloys because it has a combination of great features such as high strength, corrosion resistance, and lightness. It is the perfect combination of these characteristics that make the alloy necessary in various industries, where the demand for high-performance and long-lasting products is a must. The five aspects below illustrate the main features which highlight the importance of Ti-6Al-4V alloy:
- High Strength-to-Weight Ratio: Ti-6Al-4V has a very high strength-to-weight ratio, its density is about 4.43 g/cm³. Thus, it is very much suitable for the aerospace and automotive industries where by performance weight reduction is highly done and strength maintained at the same time.
- Excellent Corrosion Resistance: The alloy’s natural power against corrosion, especially in extreme conditions such as marine or chemical applications, gives a prolonged lifespan to the parts and lowers the costs of maintenance.
- Biocompatibility: Ti-6Al-4V is one of the best candidates in the biomedical sector, for prosthetics, dental implants, and surgical tools manufacturing, for it is the safest material for the human body, and besides it has a very low degradation in biological environments.
- High Thermal Stability: This alloy which can resist temperatures up to 400 °C (752 °F) and still remains structurally sound is of utmost importance especially in the fields of jet engines manufacturing and turbine parts.
- Versatility in Fabrication: The Ti-6Al-4V alloy is capable of going through various processes easily such as forging, machining, and additive manufacturing, hence it is possible to produce very complex, and high-precision components for advanced technologies.
Material Properties of Ti-6Al-4V
Ti-6Al-4V, commonly referred to as Grade 5 titanium, is a remarkable material that possesses exceptional attributes which are deemed very significant in the aerospace, medical, and industrial sectors. A thorough investigation of the characteristics of Ti-6Al-4V along with the statistics is given underneath:
Chemical Composition
Basically, Ti-6Al-4V is made up of 90% titanium, 6% aluminum, 4% vanadium, and very small amounts of other elements such as iron (maximum 0.25%) and oxygen (maximum 0.2%). The addition of aluminum not only increases the tensile strength and hardness but also vanadium contributes its share in corrosion resistance and stabilizing the beta phase.
| Element | Composition (%) |
|---|---|
| Titanium (Ti) | Balance (approximately 88-91%) |
| Aluminum (Al) | 5.5 – 6.75 |
| Vanadium (V) | 3.5 – 4.5 |
| Iron (Fe) | ≤ 0.40 |
| Oxygen (O) | ≤ 0.20 |
| Carbon (C) | ≤ 0.08 |
| Nitrogen (N) | ≤ 0.05 |
| Hydrogen (H) | ≤ 0.015 |
| Other elements (each) | ≤ 0.10 |
| Other elements (total) | ≤ 0.40 |
Physical Properties of Titanium Alloy 6-4
- Density: Ti-6Al-4V, with a density close to 4.43 g/cm³, is significantly lighter than regular steel and that is the reason its being used in the aero and auto industries where the weight of the material is a critical factor.
- Melting Point: The alloy’s melting point is extremely high, approximately 1,660 °C (3,020 °F), which means it does not lose its strength even at very high temperatures.
- Thermal Conductivity: Titanium-6Aluminum-4Vanadium has a thermal conductivity of about 6.7 W/m·K, which is lower than that of numerous metals, but it is still good enough for the applications that require resistance to heat and very small thermal expansion.
- Coefficient of Thermal Expansion: The alloy has a thermal expansion coefficient of 8.6 µm/m·K which ensures its compatibility and support in areas with different temperatures.
- Tensile Strength: This alloy exhibits remarkable tensile strength, usually around 950 MPa in the heated state and thus it is very strong and can be used in applications of the most extreme structural demands where it would still perform well.
Mechanical Properties of Ti-6Al-4V
- Fatigue Resistance: The fatigue resistance of Ti-6Al-4V is what makes it very remarkable and consequently it is also regarded as the best option for parts subjected to cyclic loading in the three major industries: aeronautics, and automotive and medical, respectively, all of them almost at the same time.
- Hardness: The alloy is normally about 340 HB hard and hence this one of the factors that the alloy’s impotence to wear and deformation during stress has not been dependent on, it still resists the stress.
- Modulus of Elasticity: The elastic modulus of Ti-6Al-4V alters in the vicinity of 114 GPa, meaning that the material possesses adequate stiffness to be utilized in diverse fields of applications.
- Corrosion Resistance: The most important attribute of Ti-6Al-4V is that it can withstand corrosion in a wide range of areas, from seawater to very extreme chemical conditions, thus guaranteeing that the metal has a long life and will always be in a good state.
- Biocompatibility: With its non-toxic and biocompatible properties, Ti-6Al-4V is the preferred material for surgical implants, prosthetics, and dental devices. The alloy’s resistance to bodily fluids along with its ability to bond with the bone (osseointegration) has made it more popular in the medical field.
Tensile Strength of Ti-6Al-4V
Ti-6Al-4V, or Grade 5 Titanium, is a metal that people especially like because it has very good mechanical properties like tensile strength. The metal normally reaches a maximum tensile strength (UTS) of around 900 to 1200 MPa (130,000 to 174,000 psi) in its annealed condition, depending on the specific processing and treatment used. However, that strength can be elevated even more by heat treatment to a level of 1100 to 1250 MPa (160,000 to 181,000 psi). Its yield strength is also a factor, which is usually in the range of 800 to 1100 MPa (116,000 to 160,000 psi), thus it must be under load for quite a long time before it gets to the point of being deformed.
Key Advantage: One of the main advantages of this material is the combination of its high tensile strength and low density, which is only 4.43 g/cm³. So, in terms of strength-to-weight ratio, Ti-6Al-4V is superior to many structural materials, such as steel or aluminum alloys.
Annealing Process for Ti6Al4V
The annealing process of Ti6Al4V is very significant for the material to get a proper mix of strength, ductility, and little residual stress. Annealing is heating and cooling at predetermined intervals, and the final heating temperature of this titanium alloy, which is most widely used, is the cooling that enhances the microstructure and the mechanical properties.
Standard Annealing Steps:
- Heating: Normally, the titanium alloy Ti6Al4V is subjected to heating in the range of 730°C–850°C (1346°F–1562°F). The specific temperature is based on the required mechanical strengths and the distinct application.
- Holding: The metal stays at the desired temperature for 1–2 hours for heat to be evenly distributed and for microstructural changes to happen.
- Cooling: The method of cooling used for the material is controlled cooling, whether in air (air cooling, AC) or in a furnace (furnace cooling, FC). The rate of cooling has an impact on the final microstructure; for example, slower cooling yields a coarse microstructure that is very tough but slightly weaker than the fine microstructure.
Heat Treatment Data:
- Beta Annealing: In the scenario of annealing, the other technique is to heat the alloy above the beta transus temperature (about 995°C or 1823°F) and then to cool it. Such an annealing process not only helps in getting a finer grain structure but also contributes to the development of higher resistance to creep.
- Stress Relief Annealing: The heating of the alloy to the temperature range of 480°C–650°C (896°F–1202°F) for a short duration, typically less than 1 hour, is referred to as stress relief. This is a case of technique removal of residual stresses resulting from machining or welding.
Benefits of Annealing:
- Enhanced ductility and machining ease
- Reduction in internal stresses caused by the previous processing
- Fatigue strength is enhanced due to the removal of microstructural irregularities
Comparison with Other Titanium Alloys
| Parameter | Ti-6Al-4V (Grade 5) | Ti-6Al-4V ELI (Grade 23) | Grade 2 (Commercially Pure) | Ti-3Al-2.5V (Grade 9) | Ti-5Al-2.5Sn |
|---|---|---|---|---|---|
| Composition | 6% Al, 4% V, balance Ti | Similar to Grade 5, lower O | Pure Ti, trace elements | 3% Al, 2.5% V, balance Ti | 5% Al, 2.5% Sn, balance Ti |
| Density (g/cm³) | 4.43 | 4.43 | 4.51 | 4.48 | 4.50 |
| Tensile Strength (MPa) | 950–1170 | 895–930 | 345–450 | 620–895 | 860–965 |
| Yield Strength (MPa) | 880–1100 | 795–860 | 275–380 | 483–620 | 795–860 |
| Elongation (%) | 10–15 | 10–15 | 20–30 | 15–25 | 10–15 |
| Corrosion Resistance | Excellent | Excellent | Superior in seawater | Excellent | Good |
| Applications | Aerospace, medical, marine | Medical implants, aerospace | Chemical, marine, architecture | Aerospace, sports | Aerospace, high-temp parts |
| Weldability | Good | Excellent | Excellent | Good | Moderate |
| Thermal Conductivity | 6.7 W/mK | 6.7 W/mK | 16.4 W/mK | 7.2 W/mK | 6.6 W/mK |
| Operating Temp (°C) | Up to 350 | Up to 350 | Up to 300 | Up to 315 | Up to 500 |

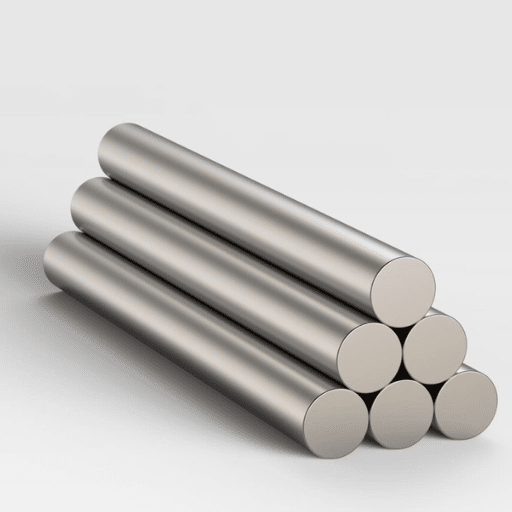

Applications of Ti-6Al-4V
Ti-6Al-4V, which is also referred to as the Grade 5 titanium alloy, is recognized and utilized for its exceptional combination of properties, namely, strength-to-weight ratio, corrosion resistance and biocompatibility. This multifunctional alloy has five main fields of application as follows:
1. Aerospace Components
Ti-6Al-4V speeds up the designer’s work from the beginning to the end, in particular, in aerospace engineering, turbine blades, airframe structures, and engine parts being its precious applications. Its lightness along with strength and temperature stability are the reasons that it gets selected for use in both commercial and military aircraft. It is found that the application of Ti-6Al-4V can lower the total weight of an airplane by up to 30%.
2. Biomedical Devices
The alloy’s superior biocompatibility and resistance to body fluids are the reasons for its being the first pick among metal for medical applications. The materials mainly involve bone fixations, implants in the mouth, and artificial organs. For example, in the case of bone fixation devices, Ti-6Al-4V offers long-term strength and compatibility with the human bone.
3. Automotive Industry
The alloy is being used in the production of high-performance cars, especially in making up engine parts, exhausts, and suspensions thus enhancing the performance and reducing the weight of the car. The leading sports cars and racing machines frequently use Ti-6Al-4V for more power.
4. Marine Applications
Thanks to its enduring non-corrosion property, which is applied along the sea, Ti-6Al-4V is installed into the marine tool industry including the main engine shaft, heat exchangers, and systems deep under water. The strength of the material guarantees dependability in the extremely tough oceanic conditions.
5. Energy Sector
Ti-6Al-4V is used for the manufacture of gas turbines and offshore wind power systems, in the latter case for the production of energy, especially. It is high-temperature tolerant and thus it can be subjected to elements that are at the same time acidic and the production process of power.
Industries Utilizing Grade 5 Titanium
1. Aerospace Industry
The aerospace industry is a major user of Titanium alloy 5 (Ti-6Al-4V). Nearly 50% of the total mined titanium is used in the aerospace sector where titanium’s benefits of being strong and resistant to corrosion are very important. The alloy is a major factor in the manufacture of different airplane parts like landing gear, fuselage and engine parts. For example, the structural weight of titanium in the Boeing 787 Dreamliner is about 15%. In addition, the ability of titanium alloy to withstand high temperatures has made it suitable for jet engines, thus ensuring both safety and performance during extreme scenarios.
2. Medical Industry
Titanium alloy 5 is a very important material for the medical industry due to its biocompatibility, which means that the alloy is not toxic and does not produce any allergic reactions in the human body. Hence, it is the choice of material for surgical implants such as hip joints, tooth substitutes, and orthopedic plates. The alloy is used for these applications primarily because it allows for osseointegration, which is the direct attachment of the implant surface to the bone cells. A recent study on the market has shown the global titanium implant market will reach $8.3 billion by 2028, primarily due to the advancement of biomedical technologies and the increasing preference for less invasive surgeries.
3. Automotive Sector
Titanium alloy 5 is getting to be used more and more in the automotive industry, particularly considering its use in the making of sports cars and luxury cars which are super performing. The main character of this material being very light thus one of the major reasons why the vehicle’s weight is being reduced overall, leading to increased fuel efficiency and speed of the vehicle as well. To be more specific, the alloy is utilized in the production of exhaust systems, connecting rods, and engine valves. A perfect example is the cars participating in the Formula 1 category that incorporate titanium parts as they can withstand the stress and high temperatures of racing. The market for titanium auto-parts is expected to grow continuously at a steady rate due to the increasing interest in eco-friendly and performance characteristics.
4. Marine Applications
Titanium grade 5 is not only the best picker when it comes to corrosion resistance but also the most liked species among the marine industry. To name a few such applications, the material finds its way into submarines, ship parts, and offshore oil drilling platforms. In comparison to steel, which is often quite a costly affair of replacement in salt-exposed areas, the titanium alloy is quite resistant to salt and can easily maintain its strength even under harsh conditions and for a long time at the sea. So, the alloy can be labeled as a major contributor in the titanium demand of the marine industry due to its quality of being long-lasting and cost-effective in maintenance and at the same time, a low-profile character needing very little acknowledgment.
5. Energy Sector
The titanium alloy is now an essential material for energy-related applications, including gas turbines and geothermal plants. Its properties of being highly resistant to fatigue and able to operate in extreme heat and corrosive conditions make it perfect for power generation components such as compressor blades and heat exchangers. Besides, in the context of the renewable energy projects, titanium is not only being considered for wind turbine components but also for hydrogen fuel production, thus showcasing its versatility in the high-tech world.
Specific Applications in Aerospace
Titanium Grade 5, also known as Ti-6Al-4V alloy, ranks among materials that are characterized by the highest strength-to-weight ratio, heat resistance, and resistance to corrosion. Hence, it has been widely accepted by the aerospace industry. The following are five distinct applications of this alloy in aeronautics.
- Aircraft Structural Components: Ti-6Al-4V is a primary material for airframe structure in a large-scale manner, mainly in the fuselage, wings, and landing gear. Its low density results in an aircraft that is lighter, which consequently leads to better fuel consumption and flight performance.
- Jet Engine Parts: Titanium alloys are often employed for jet engine parts like blades, discs, and casings. They can endure very high temperatures and pressures while maintaining the desired properties, thus aiding the smooth operation of the engine.
- Spacecraft Components: The very good application of titanium in the making of the spaceship could be seen in the use of support frames, tanks, and heat-shielding. It is the property of surviving in extremely low and high acting environments over and over that makes titanium the best and only material for conducting space explorations.
- Fasteners and Connectors: The use of titanium fasteners and connectors assumes a crucial role in the assembly of various aircraft and spacecraft sections. Their non-metallic property as well as being extremely good at not galling even under high stress makes them a major factor in the durability and stability of these structures.
- Missile Systems: The blend of strength, low density, and simultaneous ability to withstand high aerodynamic pressure is what makes Ti-6Al-4V the choice for missile hardware. This results in precise and safe performance throughout the flight, while the missile continues to fly.
Use in Biomedical Devices
Titanium Grade 5, known also as Ti-6Al-4V, is among the metals that the biomedical industry prefers the most due to its excellent properties. Because of these traits, it has turned into the material that covers the entire spectrum of medical applications, thus assuring reliability and safety even in critical health care areas. The following are the five most important applications of Ti-6Al-4V in medical devices:
- Dental Implants: Consequently, Titanium Grade 5 is habitually seen as the top choice for dental implants because its exceptional quality allows for the perfect integration with the bone by the process of osseointegration. This, in turn, assures the restorations’ long-lasting and effective functioning.
- Orthopedic Implants: Ti-6Al-4V still remains the prominent material for joint replacements, such as those for hips and knees, and for spinal fixation devices. The combination of the alloy’s properties—lightness, strength, and biocompatibility—makes it applicable for these difficult areas.
- Surgical Instruments: Titanium Grade 5 surgical instruments are manufactured to be resistant, lightweight, and impervious to rust. All these properties make them well-suited for long-term use in sterile environments, thus providing accuracy and cleanliness during medical procedures.
- Cranial and Maxillofacial Implants: The alloy is used for making cranial plates and devices for facial reconstruction mainly due to its excellent biocompatibility and close matching of mechanical properties with bone, thus reducing the chances of rejection or complications considerably.
- Cardiovascular Devices: Ti-6Al-4V is regarded as a key material for pacemakers, heart valves, and other cardiovascular devices manufacturing. Its stability and non-biodegradability assure the performance being safe and long-lasting inside the organism.

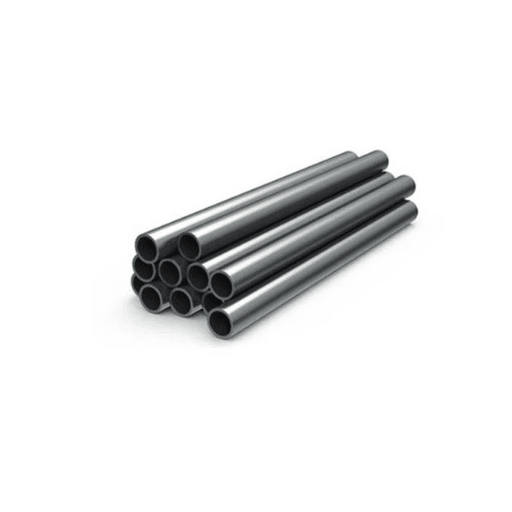

Advantages and Disadvantages of Ti-6Al-4V
| Aspect | Advantages | Disadvantages |
|---|---|---|
| Strength | High strength-to-weight ratio | Lower shear strength than tensile strength |
| Corrosion Resistance | Excellent in seawater and oxidizing environments | Vulnerable to reducing acids like HCl, H₂SO₄ |
| Biocompatibility | Suitable for medical implants | Potential ion release (Al, V) in some cases |
| Thermal Properties | Operates up to 350°C | Low thermal conductivity (6.7 W/mK) |
| Machinability | Good with proper tools and techniques | Difficult to machine, causes tool wear |
| Weldability | Good with inert gas shielding | Requires specialized equipment and techniques |
| Fatigue Resistance | Good in non-corrosive environments | Fatigue strength decreases in corrosive settings |
| Cost | Lightweight and durable for critical applications | Expensive due to complex processing |
| Applications | Aerospace, medical, marine, automotive | Limited for high-wear or sliding applications |
Benefits of Using Grade 5 Titanium Alloy
High Strength-to-Weight Ratio
Ti-6Al-4V possesses an incredible strength-to-weight ratio and therefore it gets selected by industries looking for light but strong materials. Its marvelous tensile strength of approximately 1000 MPa and the density of only 4.43 g/cm³ are the main reasons for its use in aerospace and biomedical applications.
Excellent Corrosion Resistance
The alloy has the strongest corrosion resistance, especially from rough environments like saltwater and bodily fluids. This characteristic not only increases the life span of the parts but also assures their reliability even during difficulties.
Biocompatibility
Grade 5 titanium is prominent in the medical domain primarily due to its excellent biocompatibility. It is non-toxic and does not bring about any negative biological reactions, which is why it is preferred for installations and prostheses.
High Fatigue Resistance
Ti-6Al-4V reveals an outstanding fatigue resistance which has a very positive effect for the parts that are under the influence of repetitive cyclic forces. The use of this property not only in preventing wear of the components but also in extending their life cycles in critical applications such as parts of aircraft and joint replacements.
Wide Temperature Capability
The alloy shows a broad range of reliable temperature performance, keeping its structure intact at both extremely high and low temperatures. This property gives rise to its use in engines, turbines, and space exploration tools.
Limitations and Challenges
The alloy, despite its numerous benefits, has some drawbacks and obstacles that are worth thoughtful consideration in its applications:
High Cost
The very first and perhaps the most serious drawback is the high cost connected with the manufacturing and processing. One instance is the case of production of titanium alloys which demands very elaborate and expensive extraction and refining techniques, e.g., the Kroll process that is extremely energy-consuming and pricey. The average cost of titanium is estimated to be in the range of $35 to $50 per kilogram for 2023, thus rendering it unavailable for the cost-sensitive sectors.
Machinability Difficulties
Generally, titanium alloys are known to be very hard to machine because of their low thermal conductivity and high strength-to-weight ratio. The result is usually increased tool wear and higher operational costs. Research shows that the temperature of the tools used for machining titanium alloys may go beyond 1,100°F requiring the use of special cutting tools and coolants.
Corrosion Issues in Specific Environments
In spite of the fact that titanium alloys have extraordinary corrosion resistance in a lot of environments, they still suffer from corrosion in very oxidizing or reducing acid solutions such as hydrochloric acid (HCl). Data for instance, indicates the possibility of localized pitting and cracking in the very stressed conditions of such environments.
Fatigue and Crack Propagation
Titanium alloys reveal good fatigue resistance during normal conditions though they can be very fast to crack in case of great fluctuations of both stress and temperature levels. A study from aerospace applications indicates that micro-cracks in the titanium parts can grow more quickly than those in other alloys under a condition of extreme cyclic loads.
Environmental Impact of Production
The titanium alloys production entails energy-intensive processes that lead to a higher carbon footprint in comparison with other materials. According to findings, the carbon emissions from titanium production may reach up to six times higher than steel production per ton raising the question of sustainability for large-scale use.
Future Outlook for Ti6Al4V Usage
The challenges that Ti6Al4V brings with it, such as the considerable carbon footprint and high cost of production, are all negated by the author’s bright vision for the material’s future. Mainly through the development of greener production methods and the upgrading of recycling techniques, the reduction of environmental impact will be leading to the more sustainable application of Ti6Al4V. Besides, the collaboration between different sectors and researchers will be of utmost importance in generating new ideas for the material usage that will allow us to continue enjoying the benefits of Ti6Al4V while mitigating its downsides.
Frequently Asked Questions (FAQ)
What are the benefits of Ti-6Al-4V for the aerospace industry?
The Ti-6Al-4V alloy, otherwise known as grade 5 titanium or merely titanium 6-4, is the foremost alloy utilized in the aviation sector. This is for the reason that it possesses a great strength-to-weight ratio, nearly no weight, and has the best score in corrosion resistance among all metals. Its presence in fasteners and engine parts of aircraft structures has been pushed back no more but it is the combination of its great strength, excellent fatigue resistance, and the low coefficient of thermal expansion, compared to pure titanium, that makes it very reliable and cost effective.
What properties must be stated in the data sheet of Ti-6-Al-4-V?
A data sheet of the ASTM grade 5 titanium (6al-4v titanium) which is widely used contains tensile strength, yield strength, elongation, elastic modulus, density, thermal conductivity, and hardness. It mentions corrosion resistance, the ability to be absorbed by the body for implant applications, and proposed heat treatments. Ti-6Al-4V has a tensile and shear strength that is better than that of commercially pure titanium and therefore it finds widespread applications in diverse industries.
How does corrosion resistance factor into the advantages of Ti-6-Al-4-V?
One of the major characteristics of Ti-6Al-4V is corrosion resistance; it can practically be regarded as a benefit since this super-alloy is characterized by the sea water and other chemical environments in which it is suitable for marine and chemical processing applications, due to its excellent corrosion resistance in these environments. Also, it must be noted that the alloy is not resistant to all corrosive media; however, it develops an oxide layer that, although at a very slow rate, offers a long protection period over metals like steel and aluminum alloys.
What are the reasons for Ti-6Al-4V to be preferred in implants and medical applications?
Ti-6Al-4V, due to its high biocompatibility, impressive strength-to-weight ratio, and fatigue resistance, is chosen as the material for implants. Through heat treatment and additive manufacturing, the microstructure of the alpha-beta titanium alloy can be controlled to give the desired mechanical properties. Its corrosion resistance and tissue compatibility have made it widely used in orthopedics and dental implants; however, the purified titanium is sometimes preferred for applications where lower stiffness is needed.
What are the limitations of Ti-6Al-4V?
Despite the fact that the mechanical properties of Ti-6Al-4V (i.e. tensile strength) are high, the alloy’s drawback comes from the elastic modulus (~110 GPa), which is lower than that of steel and thus makes the alloy relatively ductile. In some cases, when designing with one specific alloy or composition, one might have to compromise on shear strength or have to deal with an area that is notched and sensitive; however, such issues are typically resolved through a combination of design and post-processing (heating, surface finishing).
Can Ti-6-Al-4-V be manufactured by using additive techniques?
Certainly, Ti-6Al-4V is one of the most frequently used titanium alloys in the field of additive manufacturing which not only includes laser powder bed fusion but also electron beam melting. Its dual-phase microstructure consisting of alpha and beta becomes very favorable with quick solidification thus enabling the production of complex shapes and net shape processes in the aerospace, medical implants, and specialty components areas. Generally, heat treatment and machining done after the build are usually carried out to get the required mechanical properties and surface quality.
What are the industriesusing Ti-6-Al-4-V?
Ti-6Al-4V is utilized in a wide variety of industries: aerospace (airframe and engine parts), medical applications, shipping, chemical processing, power generation and high-performance sports materials. Its versatility of use and high strength-to-weight ratio, lack of corrosion concerns, and techniques that allow wide-ranging manufacturing, were some of the reasons for its extensive and conventional use in the titanium industry.
