Ferritic Stainless Steel Properties and Uses
Among the different types of stainless steel, ferritic grades are the ones that get most attention due to their outstanding qualities that come together—cost-effectiveness, versatility, and durability. This comprehensive guide explores the characteristics, applications, and benefits of ferritic stainless steel across various industries.

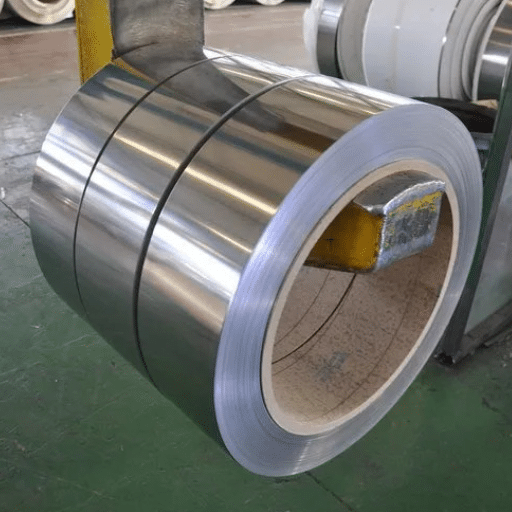

Introduction to Ferritic Stainless Steel
Ferritic stainless steel is a stainless steel variety that contains mainly iron and chromium, with a negligible amount of nickel. Its precious qualities—corrosion resistance, strength, and low price—make it very popular across many applications, including car exhausts, kitchen utensils, and buildings. Its magnetic property and good thermal conductivity further enhance its use in the iron and steel sector.
Ferritic stainless steel is the best option among others that need to be strong and resistant to oxidation as well as less dependent on expensive alloying elements like nickel.
What is Ferritic Stainless Steel?
Ferritic stainless steel is a kind of stainless steel that consists mainly of iron and chromium; it is characterized by its magnetic properties, very high resistance to corrosion, and low cost, as it has low nickel content.
Overview of Steel Grades
Ferritic stainless steels are divided into grades based on composition and performance characteristics. The combination of their properties enables them to be used in many applications, especially when strength, durability, and corrosion resistance are of primary importance.
409 (1.4512)
Composition:
Contains about 10.5-11.7% chromium along with minor amounts of titanium and carbon.
Properties:
Fairly good resistance to corrosion, high temperature resistance, and oxidation resistance.
Applications:
Mostly used in automotive exhaust systems, containers, and structural supports.
430 (1.4016)
Composition:
Contains approximately 16-18% chromium along with very low carbon levels.
Properties:
Excellent oxidation resistance, moderate corrosion resistance, and increase in magnetic susceptibility.
Applications:
Common in kitchen appliances, decorative trims, and industrial machinery.
439 (1.4510)
Composition:
An improved version of Grade 430 with higher titanium and lower carbon content.
Properties:
Excellent corrosion resistance, especially in chloride-rich areas, and easy to work with.
Applications:
Perfect for car parts, heat exchangers, and water tanks.
446 (1.4762)
Composition:
Contains about 23-27% of chromium, the highest among all grades of stainless steel, and very little carbon.
Properties:
Unmatched in scaling resistance at high temperatures and superb in harsh environment performance.
Applications:
Supportive to furnaces, heat elements, and industrial boilers.
Performance Data
The following table highlights the key mechanical properties of common ferritic stainless steel grades:
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Corrosion Resistance | High-Temperature Performance |
|---|---|---|---|---|---|
| 409 | 240-310 | 380-450 | 20 | Moderate | Good |
| 430 | 275 | 450 | 22 | High | Moderate |
| 439 | 310 | 460 | 25 | Excellent | Good |
| 446 | 275-380 | 480-590 | 22 | High | Outstanding |
Understanding the differences between these grades allows engineers and manufacturers to select the most suitable material for their specific applications, balancing performance, cost, and environmental conditions.
Importance in Materials Science
Materials science is an important area that connects engineering and scientific research by enhancing the performance of materials for various applications. Detailed material characterization and classification enable engineers and researchers to obtain accurate results tailored to their specific needs.
Key Points in Materials Science:
1. Material Properties Optimization
Materials science deals with the creation of materials having the required properties such as high tensile strength, good conductivity, and high resilience. For example, a material with “Good” durability and “High” performance could be used for harsh industrial applications.
2. Performance under Environmental Stress
An environmental test is carried out in which a material is subjected to its working temperature extremes and then its performance is monitored. This method helps select materials that withstand environmental conditions, such as extreme heat or cold.
3. Enhancing Longevity
The life span of a material is determined by the rating of “Excellent” to “Outstanding” that it gets for both wear and aging resistance. The product’s longevity, coupled with lower maintenance costs, is achieved by using this material.
4. Customization for Specialized Applications
Industries can select materials based on specific characteristics, e.g., flexibility or rigidity, for applications in the aerospace sector or medical technology.
5. Cost-Performance Balance
Materials science is a powerful tool that helps achieve the best balance of cost and performance, making projects both practical and economically viable without sacrificing efficiency.
Types of Ferritic Stainless Steel
The ferritic stainless steels are categorized under the 400 series and are composed mainly of iron and chromium with the addition of very little carbon. There are several properties these steels have in common; they are all magnetic, resist corrosion to some extent, and tolerate oxidation very well.
1 Grade 409
Composition:
10.5-11.75% Cr, max. 0.08% C, and small amounts of Ni and Mn.
Characteristics:
409 is among the least costly ferritic materials and, at the same time, provides tolerable environmental resistance to oxidation and corrosion. It’s got the most sophisticated welding capabilities and can withstand extensive deformation.
Applications:
Because of its low cost and ability to withstand high temperatures, it is used in the automotive industry for exhaust systems, catalytic converter housings, and mufflers.
2 Grade 430
Composition:
16-18% chromium, 0.12% maximum carbon.
Characteristics:
Grade 430 is almost non-reactive to nitric acid and is immune to stress corrosion cracking too. However, its thermal expansion is lower than that of austenitic grades.
Applications:
Frequently found in home appliances like washing machines, sinks, and oven liners and also in architecture as decorative trims and panels.
3 Grade 434
Composition:
Same as that of Grade 430 but with an extra 0.75-1.25% molybdenum.
Characteristics:
The presence of molybdenum in the alloy makes Grade 434 excel in corrosion resistance especially in chloride environments.
Applications:
Perfect for automotive trims, marine environments, and any industry that needs better corrosion resistance than 430 offers.
4 Grade 446
Composition:
23-30% chromium, 0.2% max carbon.
Characteristics:
446 stainless steel can withstand very high temperatures (up to 1,800°F) without scaling or oxidation taking place and at the same time being resistant to both sulfuric and phosphoric acids.
Applications:
Its widespread usage is found in high-temperature assembly operations; thus it is used for manufacturing heat exchangers, furnace parts, and kiln linings.
Key Advantages of Ferritic Stainless Steel
- Corrosion Resistance: The presence of chromium in the ferritic steel oxidizes slowly, making it less affected by acids and moisture—these properties make it very important to work with this type of metal in chemical or outdoor applications.
- Thermal Conductivity: Ferritic types are much more thermally conductive than austenitic types, thus making them suitable for heat-exposed applications.
- Economic Viability: Ferritic steels are the least expensive among the stainless steel families since they contain a lower quantity of nickel.
Common Ferritic Stainless Steel Grades
Ferritic stainless steels have different grades tailored for distinct applications based on their chemical composition and properties. Resistance to corrosion and high temperatures are the most critical factors when selecting grades for specific applications.
Grade 409
Composition: ~10.5-11.75% Chromium, almost no nickel.
Features: Suitable for welding, mediumthermal conductivity, and low-priced material.
Applications: Car exhaust systems, heat exchangers, and food containers.
Grade 430
Composition: ~16-18% Chromium, very low nickel.
Features: Excellent resistance to both corrosion and oxidation in mildly corrosive environments.
Applications: Kitchen appliances, decorative trims, and architectural applications.
Grade 434
Composition: ~16-18% Chromium, 0.9-1.2% Molybdenum.
Features: Much better resistance to pitting and crevice corrosion than Grade 430.
Applications: Automotive trim, roofing materials, and components exposed to saltwater environments.
Grade 436
Composition: ~16-18% Chromium, 0.75-1.25% Molybdenum, plus niobium or titanium for stabilization.
Features: Excellent stress corrosion cracking resistance, high-temperature strength, and scaling resistance.
Applications: Exhaust systems, chemical processing equipment, and heat exchangers.
Grade 444
Composition: ~17-20% Chromium, 1.75-2.5% Molybdenum.
Features: Steel can resist pitting, crevice corrosion, and stress corrosion in harsh conditions.
Applications: Desalination plants, hot water tanks, and marine equipment.
Comparison with Other Types of Stainless Steel
Ferritic vs. Austenitic vs. Martensitic Stainless Steel
| Parameter | Ferritic Stainless Steel | Austenitic Stainless Steel | Martensitic Stainless Steel |
|---|---|---|---|
| Chromium Content | 10.5%-30% | 16%-26% | 12%-18% |
| Nickel Content | None or very low | 8%-14% | None |
| Magnetic Properties | Magnetic | Non-magnetic | Magnetic |
| Corrosion Resistance | Good, especially in less aggressive environments | Excellent, even in harsh environments | Moderate |
| Thermal Conductivity | High | Moderate | Moderate |
| Thermal Expansion | Low | High | Moderate |
| Strength | Moderate | Moderate | High |
| Ductility | Moderate | High | Low |
| Weldability | Moderate | Excellent | Moderate |
| Heat Treatability | Not heat-treatable | Not heat-treatable | Heat-treatable |
| Stress Corrosion Cracking Resistance | High | Low | Low |
| Applications | Automotive, appliances, exhaust systems | Food processing, chemical equipment | Cutlery, surgical tools, industrial blades |
| Cost | Lower | Higher | Moderate |
Duplex Stainless Steel vs. Ferritic Steel
| Parameter | Duplex Stainless Steel | Ferritic Steel |
|---|---|---|
| Microstructure | Dual-phase: Austenite + Ferrite | Single-phase: Ferrite |
| Strength | High, twice that of ferritic steel | Moderate |
| Corrosion Resistance | Excellent, especially in chloride environments | Moderate, less resistant to chlorides |
| Magnetism | Partially magnetic | Highly magnetic |
| Ductility | Good, better than ferritic steel | Lower than duplex |
| Weldability | Good, requires controlled heat input | Moderate, simpler than duplex |
| Cost | Higher due to alloying elements | Lower, fewer alloying elements |
| Applications | Marine, chemical, oil & gas industries | Automotive, appliances, architectural uses |
| Thermal Conductivity | Lower than ferritic steel | Higher than duplex |
| Temperature Resistance | Limited above 300°C | Better for high-temperature applications |
Properties of Ferritic Stainless Steel
Ferritic stainless steels have a unique combination of properties that enable them to be used in many applications. Here are five main characteristics of ferritic stainless steel in detail:
Corrosion Resistance
Ferritic stainless steels have rust-free and oxidation-resistant characteristics that make them appropriate for outdoor and marine applications, besides giving them the ability to resist mildly corrosive environments.
Thermal Conductivity
These steels have excellent conductivity compared to austenitic stainless steels. Due to this ability, they are often used in applications such as heat exchangers and hot water tanks.
Magnetism
The ferritic stainless steels are associated with magnetism due to their body-centered cubic BCC crystal structure. This attribute sets them apart from the other stainless steels like the austenitic ones.
Resistance to Stress Corrosion Cracking
They can withstand the production of stress corrosion cracks in the chloride-rich environments, thus being less prone to failure and more reliable for long-term use in such conditions.
Price-Competitive
Ferritic grades usually contain less nickel than austenitic stainless steels, resulting in lower cost but still providing a pretty good balance of performance and longevity.
Chemical Composition
When discussing ferritic stainless steels, one must mention iron and chromium, as they are the primary constituents. The chromium in the composition of ferritic stainless steels ranges, as a rule, from 10.5% to 30% in general. The excellent corrosion resistance provided by the high chromium content is particularly effective against oxidation and chloride-induced attack.
Key Elements in Ferritic Stainless Steel:
- Carbon (≤0.12%): It is a strength-enhancing agent; however, it is kept at a low level to avoid weldability issues and brittleness.
- Molybdenum (0-4%): The pitting and crevice corrosion resistance are improved, particularly in marine environments, with the addition of this element.
- Titanium and/or Columbium (Niobium) (≤1%): This is to stabilize the steel structure and increase resistance to intergranular corrosion.
- Silicon (≤1%): This is a highly regarded deoxidizing agent in the steel industry and also a contributor to the steel’s oxidation resistance.
- Aluminum (≤1%): It is common to find aluminum in some grades, where it is primarily used to enhance oxidation resistance and improve structural stability.
Mechanical Properties
Ferritic stainless steels exhibit a set of mechanical properties that are unique and make them suitable for various demanding applications. The excellent ductility and toughness of these materials, which enable them to undergo forming and fabrication processes with ease, are primarily due to their low carbon content.
Key Mechanical Characteristics:
- Recent research has shown that grades such as 430 and 439 retain a good level of tensile strength, corresponding to an average yield strength of about 310 MPa and tensile strength of 450-600 MPa, depending on the specific alloy and processing.
- The elongation at break is usually 20-30%, indicating their formability.
- Ferritic grades have less thermal expansion than austenitic steels with a coefficient of thermal expansion of around 10.4 x 10⁻⁶/°C (at 20-100°C), which is far lower than that of austenitic grades.
- Grade 430 displays a range of Vickers hardness from 150 to 200 HV, meaning that the material is durable and can be processed well during the production stage.
Corrosion Resistance
Ferritic stainless steels are known for their unparalleled corrosion resistance, especially in environments with very mild to moderate corrosives. The leading cause of this resistance is the steel’s high chromium content, typically 10.5% to 30%. The passive oxide layer formed on the steel surface by chromium effectively shields the steel from oxidation and corrosion.
Corrosion Performance Highlights:
- Stress corrosion cracking resistance of ferritic grades like 430 and 409 has been reported to be superb compared to austenitic grades.
- Recommended for chloride exposure settings like automotive exhaust systems or building facades.
- Present a very conspicuous abnormally high rate of 0.02 mm/year in environmental conditions regarded as neutral.
- Excellent resistance to pitting and crevice corrosion contributes to their longevity in unstable and humid environments where salt and moisture are present.
- The recent practice of adding molybdenum in certain grades has resulted in prolonged steel durability even in harsh conditions.

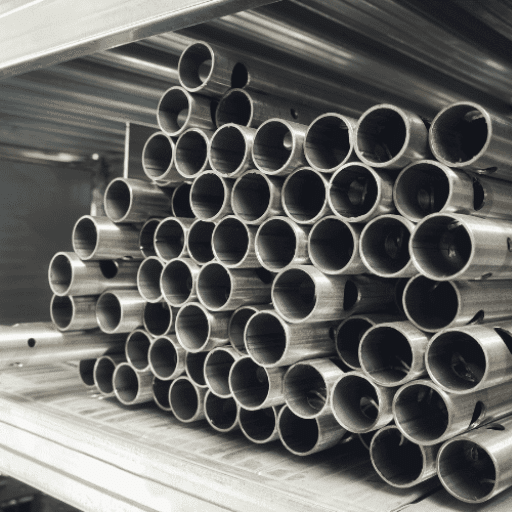

Applications of Ferritic Stainless Steel
Ferritic stainless steels offer an extraordinary combination of properties that let them be used in several application areas. The excellent corrosion resistance and thermal conductivity, along with their reasonable price, enable their effective use in several industries.
🚗
Automotive Industry
Ferritic stainless steels find wide application in the manufacturing of automotive exhaust systems. Their resistance to high temperature and corrosion makes them suitable for parts such as exhaust manifolds, catalytic converters, and mufflers. Grades 409 and 439 are the most commonly used in these systems due to their life and heat resistance.
🏠
Home Appliances
They are the most common choice of metals for home appliances such as washing machines, refrigerators, and ovens. Their corrosion resistance, coupled with aesthetic appeal, contributes to longevity and low maintenance, making them a cost-effective choice for manufacturers and consumers alike.
🏭
Industrial Equipment
Ferritic stainless steels are very good at resisting stress corrosion and can therefore be used in industrial equipment that undergoes harsh treatment in corrosive environments. Industries that deal with oil and gas, food processing, and petrochemicals use such equipment as heat exchangers, chemical processing vessels, and storage tanks.
🏗️
Construction Materials
Stainless ferritic steels have become popular in construction for architectural panels, roofing, and cladding. Their ability not only to retain structural integrity but also to withstand weather-related corrosion makes them a viable, long-lasting option for contemporary infrastructure projects.
🍳
Cookware and Kitchen Utensils
Properties like high thermal conductivity and corrosion resistance make Ferritic stainless steels suitable for cooking and kitchen utensils. They include items like pots and pans, cutlery, and sinks, which, thanks to those qualities, ensure safety and hygiene while also providing a nice appearance.
Benefits of Ferritic Stainless Steel in Manufacturing
✓ Corrosion Resistance
Ferritic stainless steels exhibit exceptional corrosion resistance and are used in environments where moisture, chemicals, and even saltwater are present. Their high chromium content acts as a barrier against rust and oxidation, thus allowing the materials to last longer in different applications.
✓ Cost-Effectiveness
The lower price of ferritic grades compared to austenitic stainless steels is due to their lower nickel content. This economic factor makes them very appealing for large-scale manufacturing, where material costs are a main factor.
✓ High-Temperature Stability
These steels do not lose their structural and mechanical properties even at the highest temperatures. This is why they can be applied in areas such as automobile exhaust systems and industrial heat exchangers, where materials die under deformation only at the highest levels of heating.
✓ Excellent Weldability
Welding ferritic stainless steels is simpler than that of other stainless steel types, especially in thinner sections. This trait diminishes the time and cost needed for fabrication, and at the same time, gives strong and reliable joins for structural components.
✓ Magnetic Properties
Ferritic grades, unlike austenitic stainless steels, are magnetic, which can be a plus in applications that require magnetic responsiveness. This feature is beneficial in industries like electronics and manufacturing equipment.
Innovative Applications
🚙 Automotive Industry
Ferritic stainless steels boast not only their phenomenal corrosion resistance but also the ability to hold high temperatures, which are the main reasons for their wide use in automotive exhaust system production. According to research, up to 20% of the life span of the exhaust components can be achieved by putting ferritic stainless steel in, hence the reduction of the maintenance costs.
🏠 Home Appliances
Refrigerators, washing machines, and ovens are the most common examples of household appliances where ferritic stainless steel is used because of its durability and magnetic properties. Almost 30% of today’s home appliances use ferritic grades because of their resistance to daily wear and ensuring the longevity of the appliance.
🏗️ Construction and Architecture
Ferritic stainless steels are used mainly in the architectural places where roofing, cladding, and structural supports are applied. The combination of their aesthetic appeal and excellent resistance to atmospheric corrosion makes them the most preferred materials for the construction of famous buildings and bridges.
⚡ Energy Sector
In power plants and renewable energy systems, the energy sector mainly uses Ferritic stainless steels. Their heat resistance and low thermal expansion are significant for the installation of heat exchangers and boilers, thereby making energy production safer and more efficient.
🏭 Industrial Equipment
Ferritic stainless steel is relied on by processing and manufacturing equipment, which includes food processing machines and chemical handling tools, for hygiene, magnetic responsiveness, and resistance to extremely harsh chemicals. This in turn makes it easier for them to conform to the regulations, and the performances that they give are better too.

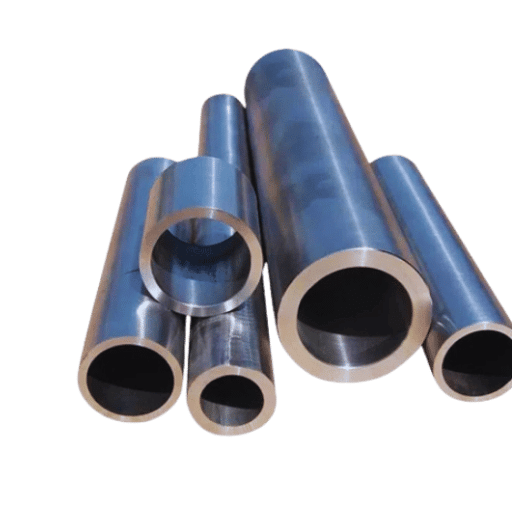

Advantages and Limitations
✓ Advantages
Corrosion Resistance
Ferritic stainless steel is exceptionally resistant to corrosion, particularly in wet and mildly acidic environments, making it suitable for wear-resistant applications.
Cost-Effectiveness
In a comparison between ferritic and austenitic stainless steels, the former ones are cheaper due to lower nickel content which not only results in lower production costs but also gives high productivity.
Thermal Conductivity
Ferritic stainless steel, with higher thermal conductivity than austenitic types, is well-suited for applications in heat transfer and thermal management.
Magnetic Properties
Ferritic stainless steel responds to magnetic fields, which comes in handy in areas where the use of electrical and electronic devices, such as transformers and motors, is required.
Environmental Sustainability
Ferritic stainless steel is fully recyclable; therefore, it promotes eco-friendly manufacturing practices and lessens the overall environmental impact through the recycling process.
✗ Limitations
Lower Toughness
Ferritic stainless steel is characterized by low toughness, especially at low temperatures, limiting its application in very cold areas.
Weldability Concerns
Ferritic stainless steel is prone to grain growth and brittleness in the heat-affected zone, requiring meticulous handling during welding.
Limited Strength
Even though it is tough ferritic stainless steel usually has lower strength than martensitic grades, hence it is not a good candidate for high-strength structural applications.
Work Hardening
Ferritic stainless steel does not show a significant increase in hardness due to the work-hardening process like the other stainless steels; this might lead to some difficulties in certain cold-forming processes.
Surface Finish Consistency
The ferritic type of stainless steel is known for its difficulty in achieving a consistent surface finish, this may disrupt the aesthetic applications where the look of the finish is of utmost importance.
Future Outlook for Ferritic Steel
The outlook for ferritic steel is bright all the way, driven by manufacturing developments and an increasing need across sectors. Ferritic steel has improved significantly in its corrosion resistance and strength as a result of ongoing research and development. Advanced alloying methods and nanotechnology are among the innovations that are producing materials with higher performance in extreme conditions.
The projected demand increase in the automotive and construction industries will be a strong support for ferritic steel sales. The global steel market is estimated to grow at a compound annual growth rate (CAGR) of around 4.1% between 2023 and 2030, according to industry reports. The ferritic grades, which are appreciated for their high strength and low cost, as well as their very good heat-conducting properties, are well positioned to respond to the rapid rise in demand for light, energy-efficient materials in EV trucks and green building practices.
Sustainability is another important factor influencing the future of ferritic steel. Recycling the material and requiring less energy for production than other steel alloys are among the reasons why ferritic steel aligns with the global movement to reduce materials’ carbon footprint in production. Manufacturers are thus trying to optimize the processing methods so that the emissions could be reduced, which includes the adoption of hydrogen-based steelmaking practices.
Emerging applications like heat exchangers, fuel cells, and desalination plants are opening new markets for ferritic stainless steel due to its excellent resistance to oxidation and chloride-induced corrosion. These trends make it clear that ferritic steel has a bright future, reaffirming its position as a sustainable and adaptable material in the ever-changing global market.
Frequently Asked Questions (FAQ)
What are the properties of ferritic stainless steel?
One of the main characteristics of ferritic stainless steel is its good corrosion resistance; it has moderate strength and magnetism as well. The central microstructure of ferritic stainless steel is ferrite, which gives it ductility and weldability. The main alloying element in this steel is chromium which adds to the steel’s corrosion resistance and makes it suitable for different applications.
What are the different types of ferritic stainless steel?
Ferritic stainless steel can be divided into different types based on their chemical composition and mechanical properties. The most common groups are the low-carbon group, which contains group 1 ferritic steels, and group 4 ferritic stainless steels, which are known for their high chromium content. Each type has unique features and so, it can be used for a particular application.
How does the chemical composition affect ferritic stainless steel grades?
The chemical composition of ferritic stainless steel grades is a crucial factor influencing their mechanical properties and performance. Generally, the addition of chromium is typical for these steels, while the use of molybdenum or nickel for corrosion resistance is less common. The accurate ratio of these elements set the grade of stainless steel alloy and the respective environment for the grade.
What are the benefits of ferritic stainless steel’s low-carbon composition?
Low carbon composition in ferritic stainless steel has benefits like the ductility of the material combined with reduced susceptibility to intergranular corrosion. The low carbon trait renders the ferritic stainless steels suitable for corrosion resistance along with the requirement of high strength and durability. Besides, they exhibit good mechanical properties even at high temperatures.
Can ferritic stainless steels be hardened?
Ferritic stainless steels cannot be hardened by conventional methods such as quenching as in the case of traditional heat treatment. However, they can be slightly strengthened by cold working. This attribute sets them apart from the austenitic and martensitic stainless steels that can be hardened effectively and thus have a wide range of mechanical properties.
What is the difference between ferritic and austenitic stainless steels?
The major difference between ferritic and austenitic stainless steels lies in their microstructures and properties. Ferritic steels consist mainly of ferrite, which is why they are magnetic, whereas austenitic steels, with their cubic structure, are non-magnetic. Moreover, ferritic steels have lower ductility compared to austenitic grades and cannot be hardened.
What are some common applications of ferritic stainless steel?
The applications of ferritic stainless steel include automotive exhaust systems, kitchen appliances, and architectural components among others. Thanks to its reasonable corrosion resistance and good forming ability it is also used for industrial equipment and piping systems. Ferritic stainless steel performs better in such applications due to good mechanical properties and low carbon content.
How do ferritic stainless steels compare to duplex stainless steels?
Ferritic and Duplex stainless steels are totally different in terms of composition and properties. Duplex stainless steels contain both ferritic and austenitic structures; thus, they offer higher strength and corrosion resistance than standard non-austenitic grades. On the other hand, ferritic steels are the materials for numerous applications whereas duplex steels are incorporated in areas with high stress and corrosive conditions due to their superior quality.
Conclusion
Ferritic stainless steel stands as a remarkable material that successfully balances cost-effectiveness, durability, and performance across a wide range of industrial and consumer applications. Its excellent corrosion resistance, thermal conductivity, magnetic properties, and economic viability make it an indispensable choice for automotive, construction, home appliances, and industrial sectors. While it has certain limitations such as lower toughness at cold temperatures and welding challenges, ongoing research and technological advances continue to expand its capabilities and applications. As sustainability and efficiency become increasingly important in manufacturing, ferritic stainless steel is well-positioned to play a crucial role in meeting the evolving demands of modern industry while supporting environmental responsibility through its recyclability and energy-efficient production processes.
References
- Corrosion Behavior of Ferritic Stainless Steel in Biodiesel Media
This study investigates the corrosion behavior of ferritic stainless steel in biodiesel environments.
- Mechanical Properties and Morphology of Stainless Steel Substrates
This paper examines the mechanical properties and surface morphology of stainless steel, including ferritic grades.
